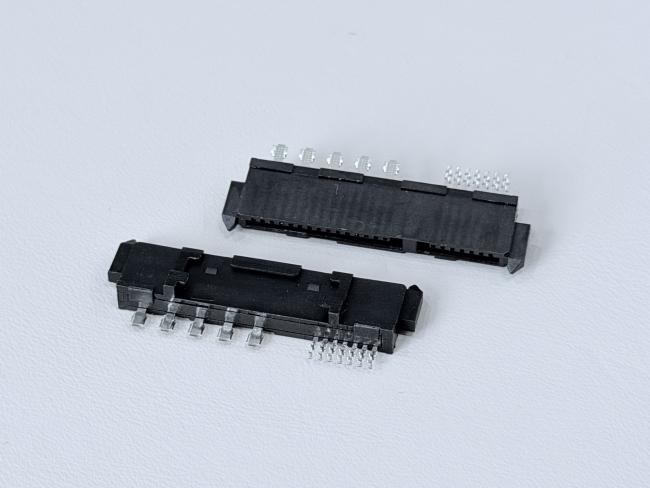

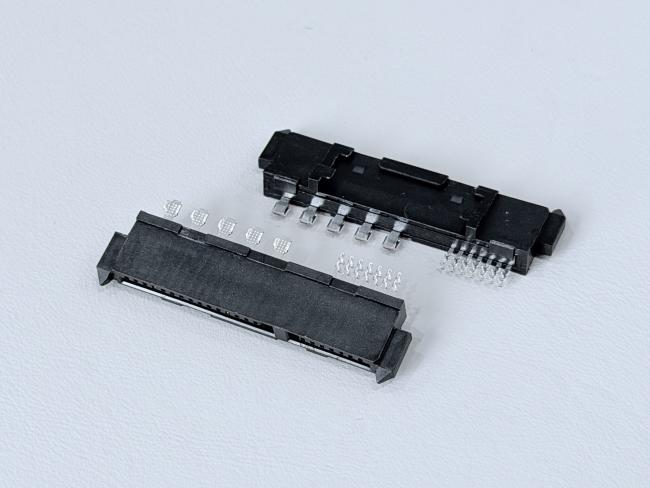

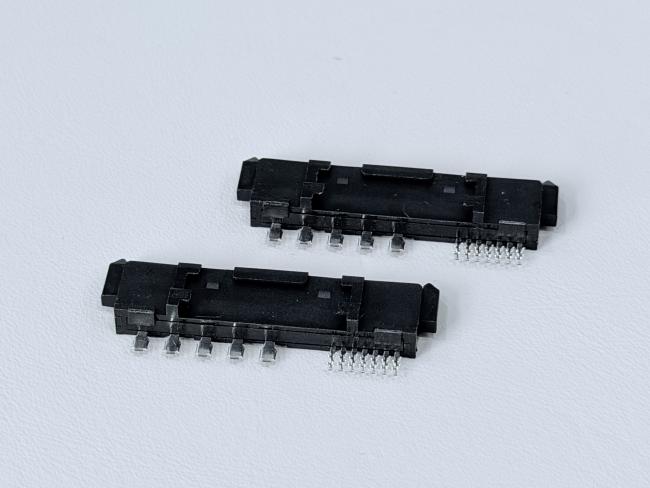

SATA 22-Pin Female Connector Series, 15P Reverse-Cup Type, 180° SMT, Gold-Plated G/F, Electronic Signal & Power Transmission Connector for Server, Automotive & PCB Applications
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
This SATA 22-Pin Female Connector is designed for high-reliability signal and power transmission in compact PCB layouts.
Featuring a 15P reverse-cup terminal structure, 180° SMT mounting, and gold-plated G/F contact surfaces, the connector delivers excellent conductivity, low contact resistance, and long-term durability in demanding electronic environments.
The housing is made from UL94-V0 flame-retardant PBT with 20% glass fiber, ensuring dimensional stability and heat resistance during SMT soldering. High-precision phosphor-bronze terminals provide consistent mechanical strength, achieving ≥0.8 kgf retention force and ≥25 N unmating force without deformation.
This connector is widely used in servers, automotive electronics, industrial control systems, data-storage devices, embedded PCs, and customized PCB solutions.
Its robust mechanical performance and gold-plating make it ideal for high-frequency, high-reliability interconnection applications.
| Product Type | SATA 22-Pin Female Connector |
| Terminal Type | 15P Reverse Cup Type, No-Insert Slot |
| Pitch of Housing | 1.27 mm |
| Rated Current | 1.5A @ 40VAC |
| Contact Resistance | ≤30 mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Withstand Voltage | 500 VAC / 1 minute |
| Terminal Plating | Ni ≥ 50 u” (base) + Au G/F on contact area |
| Solder/Crimp Area Plating | Tin ≥ 80 u” |
| Mating Force | ≤45 N |
| Removal Force | ≥25 N static test, no damage |
| Single Pin Retention Force | ≥0.8 kgf |
| Housing Material | PBT 20% G/F, UL94-V0 (Black) |
| Terminal Material | Phosphor Bronze C5191-H, T=0.25 |
| Operating Temperature | –20°C to +85°C |
| Compliance | RoHS 2.0 |
| Customization Options | Pin configuration / plating / housing color / packaging |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
