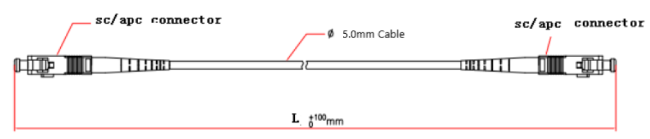

5.0mm SC APC To SC APC Single Mode (GJYXFJH)Patch Cord For FTTx Networks
SC to SC Single Mode (GJYXFJH) Pactch Cord Features:
1. Low insertion loss and high return loss
2. Excellent end-face geometry parameter
3. Special specifications available upon customer’s request.
SC to SC Single Mode (GJYXFJH) Pactch Cord Applications:
1. Data Transmission Networks
2. Image transmission Networks
3. CATV
4. Optical test instrument
5. Photoelectric automatic control system
SC to SC Single Mode (GJYXFJH) Pactch Cord Optical performance index of connector:
| Item | Unnit | Index | Remarks |
|
Operating wavelength |
nm |
1260～1650 |
|
|
Insertion loss |
dB |
≤0.3 |
|
|
Return loss |
dB |
≥60 |
|
|
Repeatability |
dB |
≤0.1 |
|
|
Interchangeability |
dB |
≤0.2 |
|
|
Working temperature |
℃ |
-40～+85 |
SC to SC Single Mode (GJYXFJH) Pactch Cord Cable Cross Section:
SC to SC Single Mode (GJYXFJH) Pactch Cord Fiber Parameter:
| No. | Items |
Test Standard |
Test Method |
| 1 |
Core non circularity |
≤ 6% |
ITU-T G.657 |
| 2 |
Cladding diameter |
125.0±0.7μm |
|
| 3 |
Core/cladding concentricity error |
≤ 0.6μm |
|
| 4 |
Cladding non circularity |
≤ 1.0% |
|
| 5 |
Coating diameter |
245±10μm |
|
| 6 |
Coating/cladding concentricity error |
≤ 12μm |
|
| 7 |
Attenuation coefficient |
1310nm≤0.35dB/km |
|
|
1550nm≤0.21dB/km |
|||
| 8 |
Zero dispersion slope |
≤ 0.092ps/(nm2·km) |
|
| 9 |
Zero dispersion wavelength |
1300~1324nm |
|
| 10 |
Polarization mode dispersion |
≤ 0.20 ps/√km |
|
| 11 |
Mode field diameter |
1310nm:9.0±0.4μm |
|
| 12 |
Cut-off wavelength |
1170~1330nm |
|
| 13 |
Chromatic dispersion
|
1288~1339nm≤3.4ps(nm·km) |
|
|
1550nm≤18 ps/(nm·km) |
|||
|
1625nm≤22 ps/(nm·km) |
