Indoor 3.0mm SC APC Through-Wall Fiber Optic Patch Cord Of FTTx Network
The Carefiber Through-wall Patch cord is a type of cable used to transmit signals through walls or other obstacles, allowing for signal transmission between different rooms or areas. This type of cable is commonly used in applications such as networking, television, telephone, and security systems.
Through-wall Patch Cord Features:
1. Flexibility: Through-wall jumpers allow for flexible placement of equipment and devices as they eliminate the need for direct physical connections between them.
2. Convenience: Through-wall jumpers make it easier to retrofit existing buildings with new equipment or to rearrange equipment in a room without having to run new cables through the walls or ceilings.
3. Versatility: Through-wall jumpers come in different types and configurations to suit various applications, such as coaxial cables, twisted-pair cables, and fiber optic cables.
4. Aesthetics: Through-wall jumpers can help maintain the aesthetic appearance of a room or building by avoiding the need to run visible cables.
Through-wall Patch Cord Product Description:

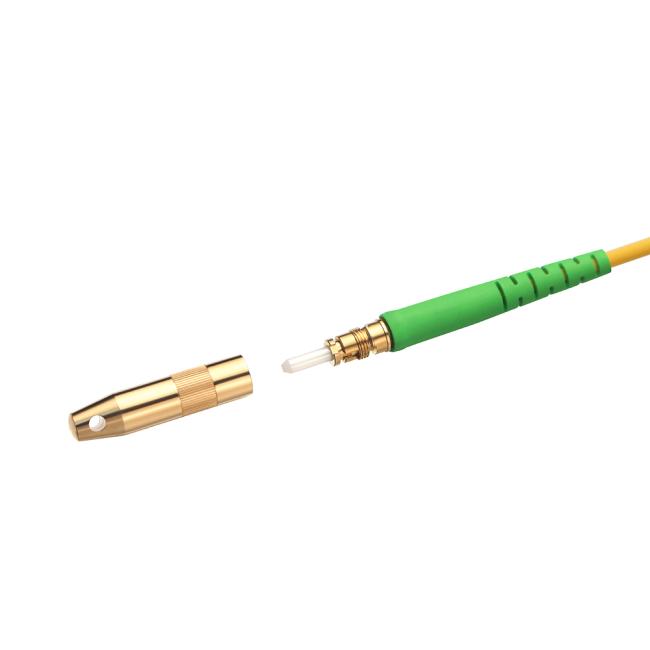

1. A SCAPC connector has been assembled in the factory, and the other SCAPC connector can be assembled on-site.
2. The SCAPC connectors assembled on-site can be used for traction construction,
3. The AssemblingSCAPC connector is made of resistant and low-friction plastic, At its upper end have a hole from which a guide wire can be attached in order to be pulled. to be able to be pulled over free and occupied ducts.
4. 100% optically tested to ensure quality performance assemblies.
5. Broad temperature range (-40 to+85°C) is ideal for indoor applications.
Through-wall Patch Cord Applications:
Mainly used as wiring cable in user access section of fiber to the home (FTTH) and other optical access (FTTx) network. Can be matched connectors for pre-assembling or field assembling.
Through-wall Patch Cord ---The Connector's optical Performance:
| Project | Spec. | Standard |
|
Operating wavelength |
1260～1650nm |
Follow GR326-CORE and IEC Standard
|
|
Insertion loss |
≤0.3dB(Typical:0.2dB) |
|
|
Return loss |
≥60(APC) |
|
|
Repeatability |
≤0.1dB |
|
|
Interchangeability |
≤0.1dB |
|
|
Mechanical Durability |
500 times |
|
|
Tractive power |
≥300N |
|
|
Attenuation changes after traction |
≤0.1dB |
|
|
Working temperature |
-40～+85℃ |

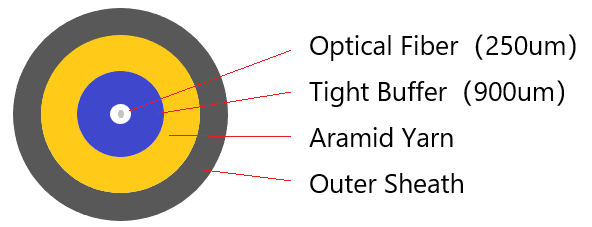

Through-wall Patch Cord--- Optical Cable Cross Section:
Through-wall Patch Cord--- Fiber Parameter:
| No. | Items |
Test Standard |
Method | ||
| M |
Core non circularity |
≤ 6% |
ITU-T G.657 |
||
| 2 |
Cladding diameter |
125.0±0.7μm |
|||
| 3 |
Cladding non circularity |
≤ 1.0% |
|||
| 4 |
Coating diameter |
245±10μm |
|||
| 5 |
Coating/cladding concentricity error |
≤ 12um |
|||
|
6 |
Attenuation coefficient
|
1310nm≤0.35dB/km |
|||
|
1550nm≤0.21dB/km |
|||||
| 7 |
Zero dispersion slope |
≤ 0.092ps/(nm2·km) |
|||
| 8 |
Zero dispersion wavelength |
1300~1324nm |
|||
| 9 |
Polarization mode dispersion |
≤ 0.20 ps/√km |
|||
| 10 |
Mode field diameter |
1310nm:8.8±0.4μm |
|||
|
1550nm:9.8±0.5μm |
|||||
| 11 |
Cut-off wavelength |
1260nm |
|||
| 12 |
Chromatic dispersion |
1288~1339nm≤3.4ps(nm·km) |
|||
|
1550nm≤18 ps/(nm·km) |
|||||
|
1625nm≤22 ps/(nm·km) |
|||||
| 13 |
Additional losses |
1turn*7.5mm&1550nm |
≤0.5dB | ||
|
1turn*7.5mm&1625nm |
≤1.0dB | ||||
Through-wall Patch Cord Product Display:
