Outdoor / Aerial Fiber Optical Cable Armored Aerial Fig8 Self-Supported Optical Cable of FTTx
1. Outdoor / Aerial Fiber Optical Cable Description:

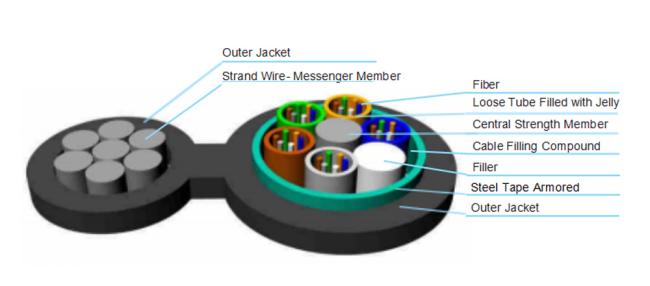

The fibers,250μm, are positioned in a loose made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of the core is a metallic strength member. The tubes(and fillers)are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate(APL)moisture completed with a polyethylene(PE)sheath to be a figure 8 structure.
Carefiber Group figure 8 cable GYXTC8S, and GYTC8A are also available on request. This type of cable is specifically applied to the self-supporting aerial installation.
2. Outdoor / Aerial Fiber Optical Cable Features:
1. Loose tube gel-filled construction for superior fiber protection.
2. CST armor to protect the cable from rodent attack and mechanical damage.
3. UV and moisture-resistant design.
4. High tensile strength of stranded wires meets the requirement of self-supporting and reduces the installation cost.
5. Good mechanical and temperature performance.
6. High-strength loose tube that is hydrolysis resistant.
7. Special tube filling compound ensures the critical protection of fiber.
8. The following measures are taken to ensure the cable is watertight: --- Steel wire used as the central strength member --- Loose tube filling compound --- 100% cable core filling --- APL moisture barrier.
3. Outdoor / Aerial Fiber Optical Cable Applications:
1. Backbones and Access.
2. Installed aerially.
4. Outdoor / Aerial Fiber Optical Cable Structure and Technical Specifications --- GYTC8S(2-288F):
|
Fiber Count
|
Nominal Diameter (mm)
|
Nominal Weight (kg/km)
|
Max Fiber Per Tube
|
Max No. of (Tubes+fillers)
|
Allowable Tensile Load (N)
|
Allowable Crush Resistance (N/100mm)
|
||
|
Short Term |
Long Term |
Short Term |
Long Term |
|||||
|
2~30 |
10.0×18.0 |
142 |
6 | 5 | 7000 | 4000 | 1000 | 300 |
|
32 ~48 |
10.7×18.8 |
155 |
6 | 6 | 7000 | 4000 | 1000 | 300 |
|
50 ~72 |
11.6×19.4 |
170 | 12 | 5 | 7000 | 4000 | 1000 | 300 |
|
74 ~96 |
13.0×20.0 |
192 | 12 | 6 | 7000 | 4000 | 1000 | 300 |
|
>144 |
Available upon customer’s request |
|||||||
5. Outdoor / Aerial Fiber Optical Cable Optical Characteristics--- GYTC8S(2-288F):
| Fiber Type | Attenuation(+20℃) | Bandwidth | Numerical Aperture | Cable Cut-off Wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤0.36dB/km | ≤0.22dB/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0.40dB/km | ≤0.23dB/km | - | - | - | ≤1450nm |
| 50/125μm | ≤3.3dB/km | ≤3.3dB/km | - | - | ≥500MHz/km | ≥500MHz/km | 0.200±0.015NA | - |
| 62.5/125μm | ≤3.3dB/km | ≤3.3dB/km | - | - | ≥500MHz/km | ≥500MHz/km | 0.275±0.015NA | - |
6. Carefibr Services
Any questions will be replied to within 24 hours.
Professional manufacturer, Welcome to visit our company.
100% test before shipping.
OEM/ODM is available (As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)
6. FAQ
Are you a trading company or a manufacturer?
We are a manufacturer specializing in Fiber Optic PLC splitters, Patch Cords, Adapter, Fast connectors, and other Communication Products. OEM & ODM services are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick it up from our office.
The cable marking can be as required for printing?
Yes, You have only to give us your marking.
