Uni-Tube Indoor/Outdoor Optical Fiber Cable 2-24F Fiber Optic Cable For FTTH
Uni-Tube Indoor/Outdoor Optical Fiber Cable For FTTH: 2~24F Fiber Optic Cable
Outdoor All-Dielectric Self-Supporting ADSS (All-Dielectric Self-Supporting) Cable For FTTH
Carefiber's GJYFXTH Cable is the structure of the access optical cable to sheath 250 um optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.
The loose tube is covered with a layer of aramid reinforcing element, and the outermost layer is extruded with a layer of low smoke halogen-free material(LSZH,low-smoke, halogen-free, flame)
1. Description of Uni-Tube Indoor/Outdoor Optical Fiber Cable :
All-dielectric loose tube optical cables for indoor/outdoor or in-ducts applications reinforced with fiberglass yarns, and with flame resistant out jacket with protection against weather and UV rays.
2. Uni-Tube Indoor/Outdoor Optical Fiber Cable Structure and Technical Specifications :

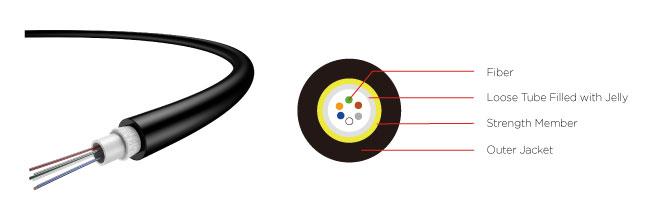

GJYFXTH-FG
| Fiber Count | Nominal Diameter(mm) | Nominal Weight(kg/km) | Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) | Aerial Install span with 1% sag | ||||
| Short Term | Long Term | Short Term | Long Term | NESC Light | NESC Medium | NESC Heavy | |||
| 2~12 | 6.0 | 27 | 1200 | 500 | 1000 | 300 | 80meters | 65meters | 45meters |
| 14~24 | 6.5 | 33 | 1200 | 500 | 1000 | 300 | 80meters | 50meters | 35meters |

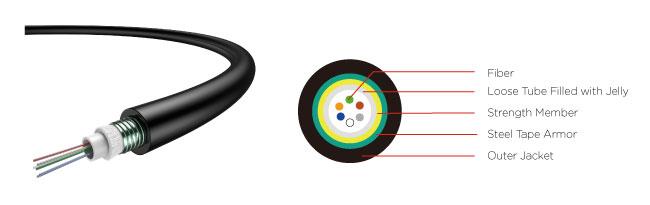

GJYFXSH-Armored
| Fiber Count | Nominal Diameter(mm) | Nominal Weight(kg/km) | Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.8 | 59 | 1200 | 400 | 2000 | 800 |
| >12 |
Available upon customer’s request |
|||||
3. Features of Uni-Tube Indoor/Outdoor Optical Fiber Cable :
1. Uni-tube gel-filled construction for superior fiber protection.
2. Small diameter and lightweight design to save space inside the duct.
3. LSZH jacket for flame resistance.
4. Applications of Uni-Tube Indoor/Outdoor Optical Fiber Cable :
1. Interbuilding voice or data communication.
2. Installed in duct, underground conduit, or aerial.
3. Indoor/outdoor.
5. Advantages of Carefiber's Uni-Tube Indoor/Outdoor Optical Fiber Cable:
1. Good Aramid yarn has excellent tensile performance.
2. Small diameter Light weight and friendly installation
3. Can using glass yarn instead of aramid to anti rodent
6. Carefibr Services
Any questions will be replied to within 24 hours.
Professional manufacturer, Welcome to visit our company.
100% test before shipping.
OEM/ODM is available (As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)
7. FAQ
Are you a trading company or a manufacturer?
We are a manufacturer specializing in Fiber Optic PLC splitters, Patch Cords, Adapter, Fast connectors, and other Communication Products. OEM & ODM services are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick it up from our office.
The cable marking can be as required for printing?
Yes, You have only to give us your marking.
