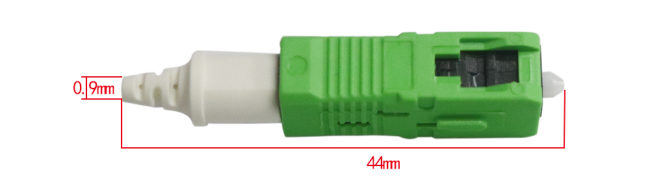

Fast Connector SC/APC Single mode Fiber Optic PrePolished Connector for 0.25mm Bare Fiber or 0.9mm Pigtail
Fast Connector SC/APC Single mode Fiber Optic PrePolished Connector for 0.25mm Bare Fiber or 0.9mm Pigtail
1. Product Features of Fast Connector SC/APC Single mode Fiber Optic PrePolished Connector for 0.25mm Bare Fiber or 0.9mm Pigtail:
1. Mechanical Splice (index matching gel)
2. Highly Stable & Reliable
3. Perfect Performance
4. Compact Package
5. RoHS Compliant
6. Finished Connector meets UL94-V0 Flammability Rated
7. TIA/EIA 568-C.3 Compliant
2. Optical Performance of Fast Connector SC/APC Single mode Fiber Optic PrePolished Connector for 0.25mm Bare Fiber or 0.9mm Pigtail:
| Project | Index | Remarks |
| Suitable for optical cable | 1260～1650nm | Consistent with GR326,IEC |
| Plug type | SC/UPC SC/APC | |
| Fiber Diameter | 0.125mm | |
| Insertion loss |
<0.5dB (typical value 0.2dB)
|
|
| Return loss | APC ≥55dB;UPC≥45dB | |
| Repeatability | 500 repetitions / I L ≤0.3 DB | |
| Tensile Strength | ≥30N(Δ IL≤ 0.2dB) | |
| Operation time | About 50S | |
| Reusable | ≥10 times | |
| Operating Temperature | -25～+85℃ | |
| High and low-temperature cycle |
△IL<0.3dB, △RL<5dB
|
3. Applicable scope of Fast Connector SC/APC Single mode Fiber Optic PrePolished Connector for 0.25mm Bare Fiber or 0.9mm Pigtail:
1. Used to open the FTTH fiber terminal end.
2. In the box, cabinet, such as wiring into the box.
3. Off the back of the accidents such as fiber, maintenance.
4. LAN, wan, data, and video transmission.
5. The construction of the fiber end-user access and maintenance.
6. Optical fiber access of mobile base station.
4. Fiber Cutting Length of Fast Connector SC/APC Single mode Fiber Optic PrePolished Connector for 0.25mm Bare Fiber or 0.9mm Pigtail:
Fixed length device
5. Carefiber Service:
Carefiber Optical Technology Co., Ltd. is in Longhua New District, Shenzhen City, Guangdong Province. Founded in 2010, after 10 years, Carefiber group has HK Carefiber, Guizhou Carefiber, and Guangxi Carefiber three sub-companies, they both are high-tech enterprises dedicated to research, development, production, and sales of FTTH products in the following categories: Indoor/outdoor drop cable, Fiber optical fast connector, Patch cord, Pigtail, PLC splitter, FTB coupler, Adaptor, Fiber distribution box, Fiber distribution frame, Fiber Joint closure, indoor and outdoor base station wiring products, MPO, data center products, 5G supporting solutions, etc, Carefiber provides customers with standard products and customized products of the integrated solutions.
Our Vision: Be a first-class optical communication enterprise.
Our Mission: Better products, technology, and services for customers.
Our Value: Strive for creation and super excellence. Make customers succeed based on mutual benefit.
FAQ:
Frequently Asked Questions (FAQs) for Fiber Optic Distribution Box:
1. What is the brand name of this product?
The brand name of this product is CFO.
2. Where is this product manufactured?
This product is manufactured in China.
3. What certifications does this product have?
This product has CE and Rohs certifications.
4. What is the minimum order quantity for this product?
The minimum order quantity for this product is 100.
5. What is the delivery time for this product?
The delivery time for this product is 7-25 days.
6. What are the payment terms for this product?
The payment terms for this product are L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
7. What is the packaging detail for this product?
The packaging detail for this product is 1pc/bag.
8. What is the supply ability for this product?
The supply ability for this product is 500pcs/day.
