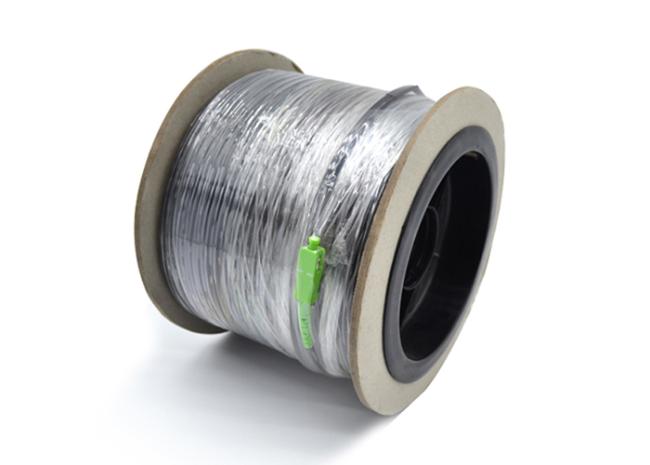

FTTH Fiber Optic Drop Cable , GJYXCH Outdoor Optical Fiber Cable Black Color
FTTH Fiber Optic Drop Cable , GJYXCH Outdoor Optical Fiber Cable Black Color
The key advantage with FTTH connectivity is that it provides faster connectivity at high speeds and great amount of communication signals than the conventional copper cables. It is estimated that while only six phone calls can be transmitted via a copper cable, more than 2.5 million calls can be sent through FTTH. Experts are also hoping that this network can easily support the futuristic technologies like high definition television and gaming transmissions.
Product standards:
ITU/T G.657A
IEC 60332-1
IEC 61034-2
IEC 60754-1 and 2
YD/T 1997-2009

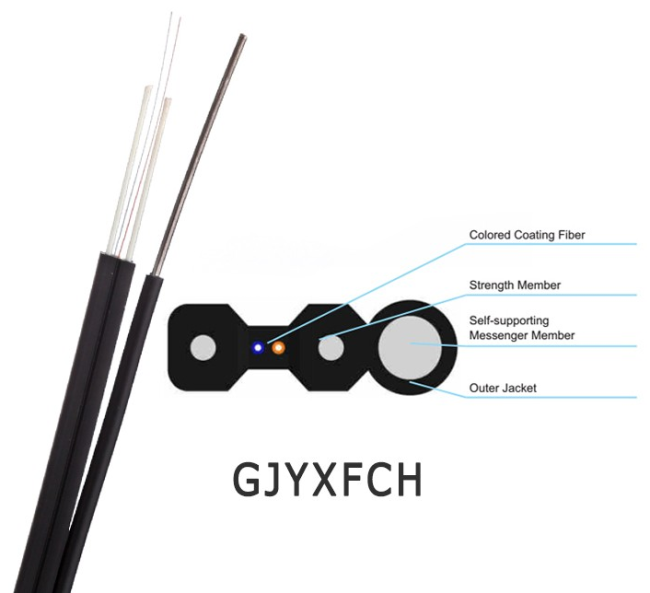

Fiber:
250µm colorfiber
Fiberglass reinforced plastic (FRP) or Steel Wire.
Self-supported Member:
Steel Wire
Outer Jacket:
UV and Flame resistant LSZH
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
|
Structure and Technical Specifications
| Fiber Count |
Cable Diameter (mm) |
Cable Weight (kg/km) |
(N/100mm) |
Crush Resistance (N/100mm) |
|||
| Short Term | Long Term | Short Term | Long Term | ||||
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 | |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 | |
Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for more information.
2.The cable core use the colored coating fiber of 250μm.
3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used
