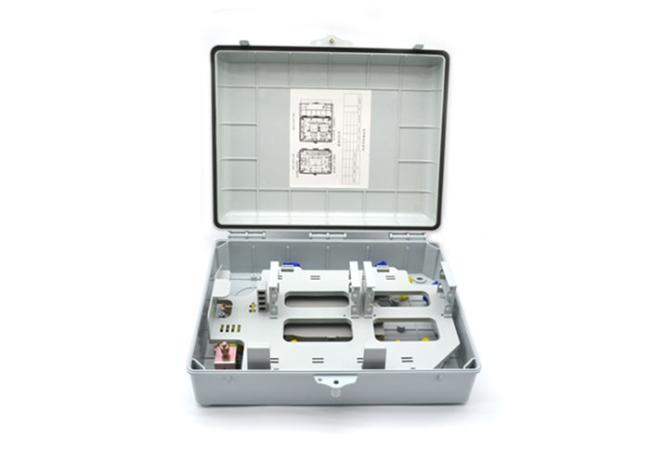

Plastic Waterproof Cable Fiber Optic Distribution Box Easy To Maintain
Plastic Waterproof Cable Fiber Optic Distribution Box Easy To Maintain
Features:
1. Water-proof design
2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm
6. Suitable for the fusion splice or mechanical splice
7. 12 ports cable entrance for FTTH drop cable
Application:
1. Optical LAN & WAN & CATV
2. FTTH project & FTTX Deployments
3. Broadband High-bit rate data transmission
4. Active device terminations
5. Testing instruments
6. Optical fiber communication networks
7. PON Networks
8. Optical Signal Distribution
Specification:
|
Dimensions and Capability |
||
| Adapter Capacity | LC Duplex | SC Simplex |
| 12 | 6 | |
| Dimensions (W*H*D) | 220mm*270mm*70mm | |
| Number of Cable Entrance | Max Diameter 10mm*Q1 | |
| Number of Cable Exit | Up to 12 Drop Cables | |
| Weight | 0.75 KG | |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Optical Splitter | |
| Installation | Wall-Mounted or Pole-Mounting | |
| Operation Conditions | |
| Temperature | -40℃ -- 60℃ |
| Humidity | 95% at 40℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Distribution box: 1 unit; Wall mount installation accessories: 1 set |
| Package Dimensions(W*H*D) | 240mm*290mm*90mm |
| Material | Carton box |
| Weight | 1.5 KG |
| Lead Time | 10-15 working days normally |
