Customised Purity 99.99% PSA Nitrogen Gas Generator PSA Vessel To ASME Code
85Nm3/h purity 99.99% pressure 5-6 bar laser usage PSA nitrogen generator PSA Vessel to ASME Code

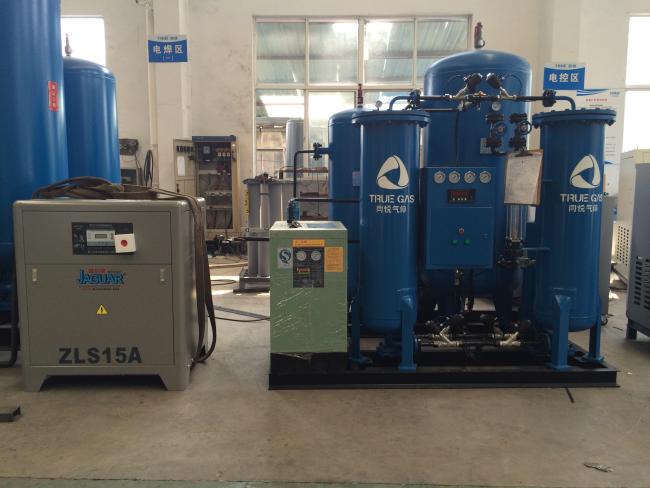

PSA (Pressure swing adsorption) Nitrogen Generator
| Purity | Flow | Pressure | Dew point |
| 95%--99.9995% | 3--6000Nm3/h | 0.8Mpa & adjustable | ≤-45ºC |
Our equipments are customised according to the clients' requirement.
So do you confirm the technical demands of N2? (such as N2 purity, flow and pressure and ect.)
Please feel free to send your request or question to us.
Main Characteristic
* Provide maximum business value
* Molecular sieve filling and compacting, adopt the professional way to complete in a professional context, higher density, higher efficiency
* Design optimization, process and structure of the system, to play the greatest potential, higher reliability
* Special valve by one million times, frequent switching fault free,and stable operation of security system
* Nitrogen can automatically record, easy to locate any work time ,work state
* System design more reasonable, more secure, more reliable.
* Automatic operation, the system, the whole process can be achieved unattended.
Specifications:
| No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
|
1 2 3 4 |
TY-3-39 TY-5-29 TY-5-295 TY-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
TY-5-49 TY-8-39 TY-12-295 TY-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
TY-10-49 TY-15-39 TY-25-295 TY-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
TY-15-49 TY-22-39 TY-35-295 TY-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 | 2100*1800*2200 |
|
17 18 19 20 |
TY-20-49 TY-30-39 TY-50-295 TY-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 | 2200*1800*2200 |
|
21 22 23 24 |
TY-30-49 TY-45-39 TY-75-295 TY-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 | 2400*1900*2200 |
|
25 26 27 28 |
TY-40-49 TY-60-39 TY-100-295 TY-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 | 2500*2100*2500 |
|
29 30 31 32 |
TY-50-49 TY-70-39 TY-120-295 TY-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
TY-60-49 TY-90-39 TY-160-295 TY-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
| 37 | TY-80-49 | 80 | 99.99% | 0.5 | |
|
38 39 40 |
TY-120-39 TY-200-295 TY-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
TY-100-49 TY-140-39 TY250-295 TY-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
| ... | ... | ... | ... | ... | ... |
