Fuji Ipm Intelligent Power Supply High Power IGBT Module A50L00010434 6MBP100VCA060-51

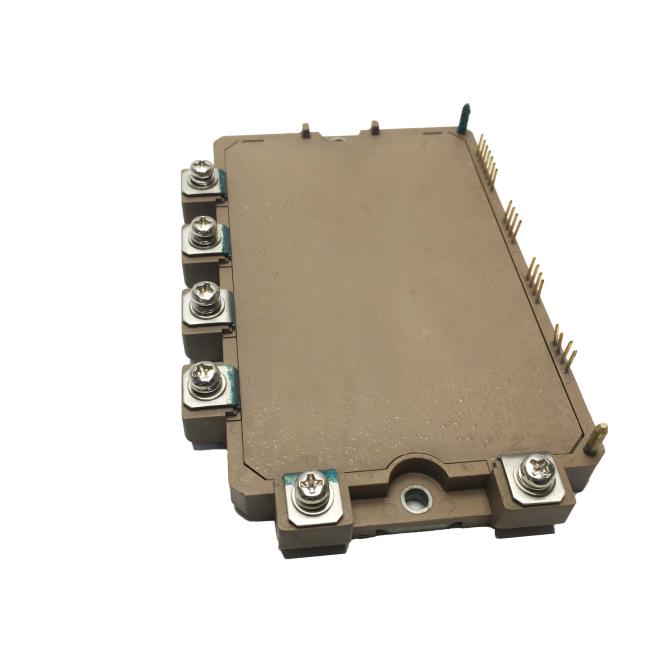

6MBP100VCA060-51 New Original Fuji Power Supply Module
High-Efficiency IGBT Power Module for Industrial Inverter & Servo Drive Systems
This specially packaged power transistor is known by Fuji Electric 6MBP100VCA060-51 and belongs to the VCA series of IPM modules. This transistor is in a 51 series package solely for FANUC. Fitting on various FANUC ai spindle amplifier and power supply modules from H015 size onwards. Rated at 100amp 600 volt. They were natively coupled with very late 0i-MD/TD controls, normally 31-M, 31-T, 32/35 series systems to name a few.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Fuji Electric |
| Part Number | 6MBP100VCA060-51 |
| IGBT Type | 6-Pack IGBT Power Module |
| Collector-Emitter Voltage (Vces) | 600V |
| Continuous Collector Current (Ic) | 100A |
| Peak Current | Up to 200A (short pulse) |
| Circuit Configuration | 3-Phase Inverter Bridge |
| Isolation Voltage | 2500Vrms |
| Switching Frequency | Up to 20kHz |
| Power Dissipation | High efficiency, low loss design |
| Operating Temperature | -40°C to +150°C (junction) |
| Mounting Type | Screw Mount |
| Package Type | Fuji IGBT Module Case |
| Application Category | Power Conversion & Motor Control |
Features:
• Temperature protection provided by directly detecting the junction temperature of the IGBTs
• Low power loss and soft switching
• High performance and high reliability IGBT with overheating protection
• Higher reliability because of a big decrease in number of parts in built-in control circuit
Typical Applications
-
AC Servo Drives
-
Variable Frequency Drives (VFD)
-
CNC Machine Tool Power Systems
-
Industrial Inverters
-
Welding Power Supplies
-
UPS Systems
-
Robotics & Automation Equipment
-
Elevator Drives
