Industrial Automation Drive VFD Power Supply Module 6MBP20RTA060 A50L00010326

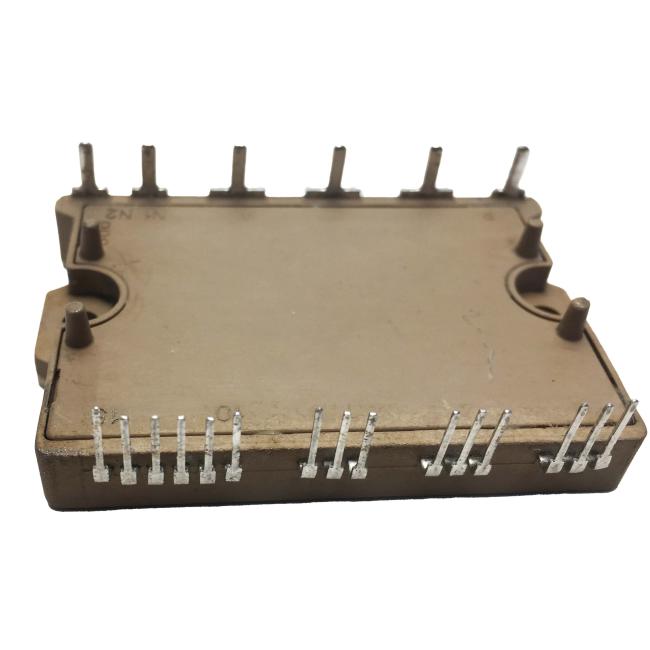

6MBP20RTA060 New In Box Power Supply Module
High-Reliability Industrial Power Module for Automation & Drive Systems
The 6MBP20RTA060 Power Supply Module is a new, factory-sealed industrial power module, designed for stable power conversion and control in demanding automation environments. Built with high-grade semiconductor components, this module delivers consistent electrical performance, fast response, and long-term operational reliability, making it ideal for industrial power systems, drive units, and control cabinets.
With its compact structure and robust electrical design, the 6MBP20RTA060 is widely used in applications where power stability, thermal performance, and system safety are critical.
| Target Application | Description / Use Case |
|---|---|
| Industrial Drives | Used in variable frequency drives (VFDs) and servo drives to control the speed and torque of electric motors in industrial machinery. |
| Renewable Energy | Employed in inverter systems for solar photovoltaic (PV) and wind power generation to convert DC power from solar panels or wind turbines into AC power suitable for the grid. |
| Electric Vehicles (EVs) | Used in power electronics of electric and hybrid vehicles to convert battery DC voltage to the AC voltage required by the electric motor. |
Core Functional Advantages
- Stable Power Output
Ensures reliable voltage and current delivery under continuous industrial load conditions, reducing system fluctuations and downtime. - Industrial-Grade Semiconductor Design
Optimized for high efficiency, low loss, and long service life in harsh operating environments. - Fast Dynamic Response
Supports rapid load changes, improving overall system control accuracy and operational stability. - Thermal & Electrical Protection Support
Designed to work within industrial protection frameworks, helping safeguard power systems from abnormal conditions.
6MBP20RTA060 Common Issues and Solution
• Overheating: Ensure proper installation with a suitable heatsink and thermal interface material, and verify secure mounting to facilitate effective heat transfer.
• Overcurrent Protection Activation: Check the load conditions to ensure they are within the module's specifications and implement current-limiting measures in the circuit design.
• Gate Drive Issues: Verify the gate drive circuit for correct voltage levels and signal quality, and ensure proper layout to minimize noise and parasitic inductance.
• Short-Circuit Protection Activation: Inspect the load and wiring for any shorts, and implement short-circuit protection mechanisms in the design.
• Insufficient Isolation: Ensure proper isolation using optocouplers or transformers as specified in the datasheet.
• Incorrect Application: Refer to the datasheet for recommended applications and ensure the module is used within its specified parameters.
