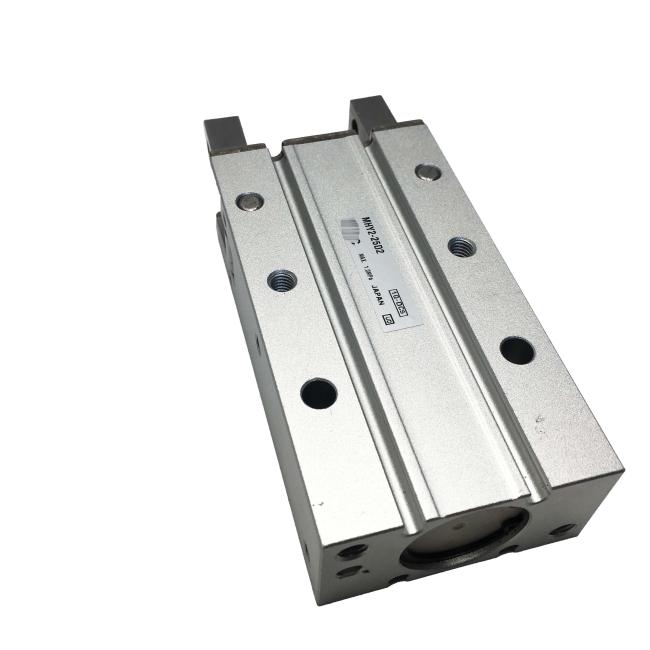

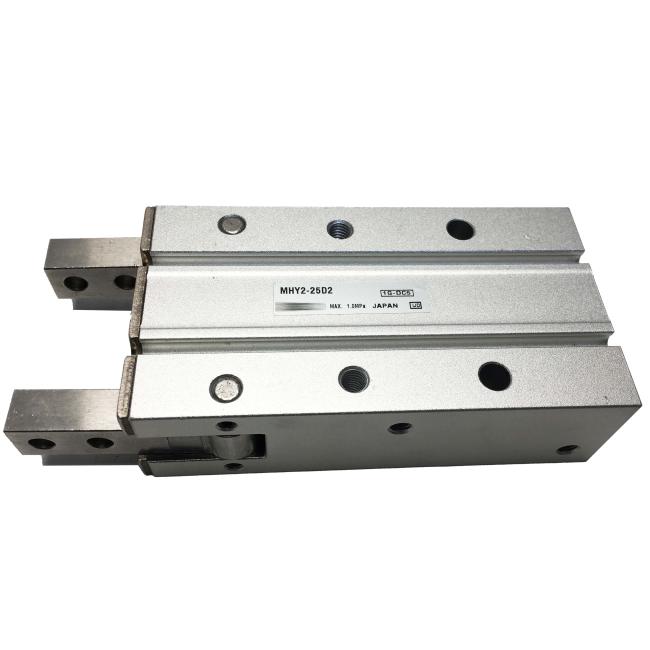

25mm Compact SMC Pneumatic Cylinder Finger Gripper MHY2-25D2-M9BAV
MHY2-25D2-M9BAV SMC Finger Cylinder — High-Precision Pneumatic Gripper
Brand: SMC
The MHY2 is a compact 180-degree angular gripper. Its size and mass allow for small, lightweight tooling, while delivering large gripping forces via piston/cam design. The MHY2 gives you maximum installation flexibility with mounting options on 4 sides and recessed auto switch grooves on either side of the gripper. Precision reference points on body and fingers are standard.
Engineered for durability and accuracy, this finger cylinder ensures consistent performance in high-speed operations while minimizing downtime.
Configured Specifications
| Parameter | Specification |
|---|---|
| Type | [Main Body] Main body |
| Gripping Methods | Pinch, Swing Type |
| Number of Fingers | 2 pcs. |
| Main Body Shape | Square Shape |
| Operation Method | Double Acting Type |
| Finger Opening Angle (A1) | 180° |
| Finger Closing Angle (A2) | −3° |
| Gripping Force (at 0.5 MPa, closing) | 75 N |
| Environment / Applications | Standard |
| Additional Functions | Not Provided |
| Stroke Adjustment Mechanism | Not Provided |
| Operating Pressure Range | — |
Core Product Features
Precision Gripping
Dual fingers ensure secure and consistent object handling, suitable for small parts and delicate components.
Compact and Lightweight
Space-saving design allows easy integration into robotic arms and automated assembly lines.
Adjustable Stroke & Force
Customizable stroke and gripping force for versatile industrial applications.
Durable Construction
Aluminum body with stainless steel fingers provides high wear resistance and long service life.
Easy Installation
Standard mounting holes and M5 pneumatic ports enable quick integration with existing systems.
