Industrial Servo Drive Yaskawa SGDH-08AE-S SGDH08AES New In Original Box
Yaskawa SGDH-08AE-S
Sigma II series SGDH servo amplifier 0.75 kW single-phase 200 V
SGDH-08AE-S Specification
| Product no. | SGDH-08AE-S |
|---|---|
| Brand | Yaskawa |
| Category | Servo amplifiers |
| Family | SIGMA II |
Technical Data
| SUPPLY VOLTAGE | 220-230 VAC |
| MOTOR POWER | 750 W |
| OUTPUT CURRENT | 4,4 A |
| DIMENSIONS | 90 x 160 x 180 mm |
| WEIGHT | 1,7 kg |
| Series Type | Σ-II Series Servopack |
| AC Input Phase | One phase |
| Model | SGDH08AES |
Checking the Sigma II Series Products on Delivery
The following procedure is suggested to check Sigma II series -SGDH Servo Amplifier products upon delivery. Use the following checklist when Sigma II series products SGDH-08AE-S Yaskawa are delivered.
| Initial Inspection | Comments |
|---|---|
| Are the delivered products the ones that were ordered? | Check the model numbers marked on the nameplates of the servomotor and servo amplifier. (Refer to the description sheet on the following pages.) |
| Does the servomotor rotate smoothly? | The servomotor shaft is normal if it can be turned smoothly by hand. Servo-motors with brakes, however, cannot be turned manually. |
| Is there any damage? | Check the overall appearance, and check if there are any scratches that have occurred during shipping. |
| Are there any loose screws? | Check screws for looseness using a screwdriver. |
If any of the above are faulty or incorrect, contact Yaskawa or an authorized distributor.
Model Number signification
SGDH – 08 A E – □
│ │ │ │ │
│ │ │ │ └─ Options
│ │ │ └──────── Type
│ │ └──────────── Supply Voltage
│ └───────────────── Maximum Applicable Servomotor Capacity
└────────────────────────── Sigma II Series – SGDH Servo Amplifier
1️⃣ Series
SGDH
Sigma II Series – SGDH Servo Amplifier
2️⃣ Maximum Applicable Servomotor Capacity
08
Maximum Applicable Servomotor Capacity
3️⃣ Supply Voltage
| Code | Voltage |
|---|---|
| A | 200V |
| B | 100V* |
| D | 400V |
* The only 100V servomotors are 0.2 kW or less SGMAH and SGMPH models.
4️⃣ Type
| Code | Description |
|---|---|
| E | For torque, speed, and position control |
5️⃣ Options
| Code | Description |
|---|---|
| R | Rack mounted |
| S | Single-Phase |
| P | Duct-Ventilated (6 to 15 kW only) |

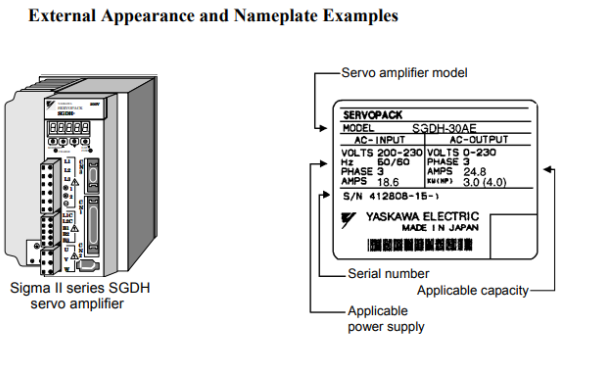

External Apperance and Naneplate Examples
FAQs for Yaskawa SGDH-08AE-S AC Drive
1. What is the input voltage and frequency requirement for the SGDH-08AE-S?
The SGDH-08AE-S's input voltage is between 200 and 230 V, and it requires an input frequency of 50/60 Hz. This allows it to be compatible with standard industrial power supplies.
2. Can SGDH-08AE-S replace other models?
The SGDH-08AE-S is specifically designed for single-phase Sigma II series and cannot be directly replaced by other series such as SGDV (Sigma V); power, voltage, and control mode must be fully compatible.
3. What communication protocols does SGDH-08AE-S support?
It can be expanded with fieldbus modules such as DeviceNet and EtherCAT, but requires corresponding communication cards and parameter settings.
4. SGDH-08AE-S AC Drive Routine Maintenance Points?
Every 6 months: Check terminals, heat sinks, and fans; clean dust.
Annually: Check capacitor status; replace fans after 2-3 years.
During operation: Monitor temperature, current, and regenerative power; promptly detect any abnormalities.
5. Does the firmware need an upgrade?
Yaskawa SGDH-08AE-S AC Drive releases firmware updates. It is recommended to upgrade during downtime maintenance to obtain functional optimizations and stability improvements.
6.Which control modes are supported?
SGDH-08AE-S AC Drive supports three modes: position control, speed control, and torque control. These can be switched via the panel or parameters.
