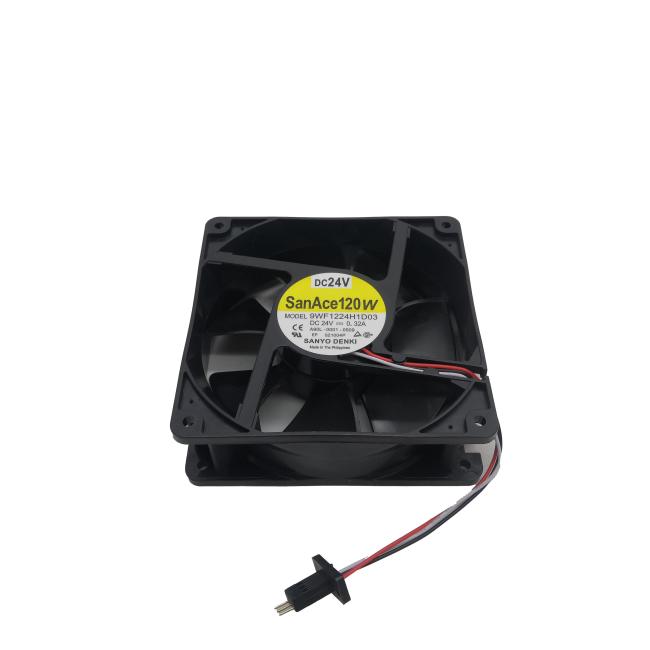

9WF1224H1D03 | Sanyo Denki SanAce120 W Oil-Proof Fan — 24V / 0.32A / 254 CFM / 120mm / 3-Wire / Ball Bearing

Oil-Proof Industrial Fan — Where Standard Fans Fail

The 9WF1224H1D03 is Sanyo Denki's SanAce120 W oil-proof 24V DC fan — a 120mm fan designed specifically for environments where standard fans fail from oil contamination. Machine tool interiors, servo drive cabinets adjacent to coolant systems, and oil mist environments in metalworking facilities expose cooling fans to lubricating oil, cutting oil mist, and coolant aerosols. A standard fan absorbs this oil into its motor windings and bearing seals over time — eventually causing motor insulation failure or premature bearing failure.

The oil-proof ("W" series) construction seals the motor and bearing cavities against oil ingress — the 9WF1224H1D03 maintains its electrical insulation integrity and bearing lubrication in these contaminated environments.

Key Specifications

3-Wire Pulse Sensor — Speed Monitoring with Protection

Pulse sensor output: The third wire provides a pulse signal proportional to fan speed — the host system (FANUC amplifier or drive controller) monitors this pulse frequency to confirm fan operation.

Locked rotor protection: If the fan stalls, the locked rotor protection circuit prevents DC motor burnout by limiting current. This protective feature maintains motor integrity even in the event of temporary blade blockage from contaminant accumulation.

Reverse polarity protection: The motor circuit resists accidental reverse connection during installation or maintenance — a minor but practical protection in field service conditions.

Applications

FANUC CNC servo amplifier cooling: A90L-0001-0509 fan replacement in FANUC Alpha and Beta series servo amplifier modules — the 9WF1224H1D03 is the Sanyo Denki fan confirmed as the FANUC-specified cooling component.

Industrial machine tool drive cabinets: Servo drive and spindle drive enclosures mounted on or adjacent to CNC machining centres and turning centres — where oil mist from the cutting area penetrates the cabinet despite enclosure sealing.

Power supply cooling in oil-contaminated environments: Industrial power supplies, welding equipment power stages, and plasma cutting power supplies operating in metalworking environments with oil mist.

CNC grinder and honing machine drives: Precision grinding and honing machine electrical enclosures where grinding fluid mist and oil lubricant vapour reach cooling fans.

FAQ

Q1: What is the oil-proof rating of 9WF1224H1D03 — is it IPxx rated?

Sanyo Denki's W-series oil-proof designation indicates motor winding and bearing sealing for oil mist and splash environments — it is not typically assigned a specific IP rating in the same format as enclosure protection classifications. The oil-proof construction provides protection against oil mist, light splash, and oil aerosol contact rather than oil submersion. For specific IP rating information, confirm from Sanyo Denki's SanAce 9WF series technical documentation.

Q2: What FANUC drive alarm indicates the 9WF1224H1D03 (A90L-0001-0509) fan has failed?

FANUC servo amplifiers monitoring the 3-wire pulse output generate SV0430 (cooling fan failure) or equivalent amplifier fan alarms when the speed signal drops to zero. The alarm may allow continued operation at reduced load or initiate a protective shutdown depending on the FANUC parameter settings. Replace the fan and reset the alarm to restore full-rated operation.

Q3: Can 9WF1224H1D03 be installed in a standard (non-oil-proof) application?

Yes — an oil-proof fan provides the same or better performance than a standard fan in a dry environment. The oil-proof sealing does not negatively affect cooling performance in clean environments. The 254 CFM airflow and 40,000-hour service life specification apply regardless of whether the installation is in an oil-contaminated or clean environment.
