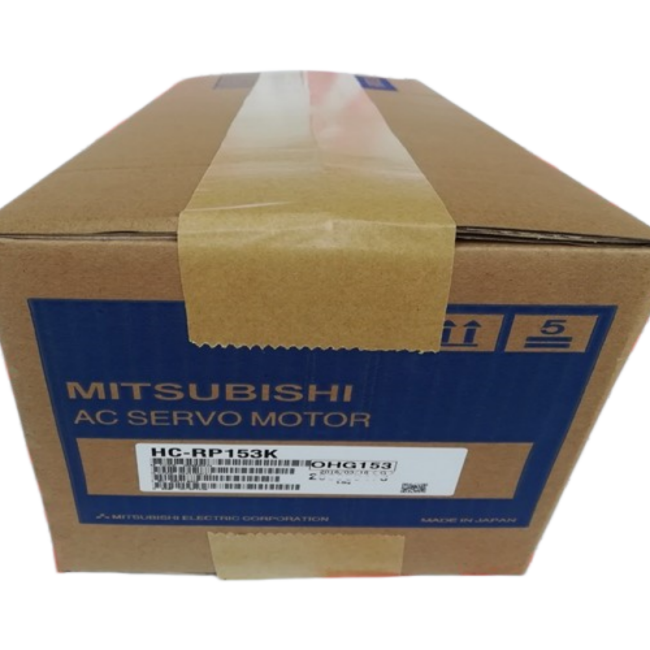

Mitsubishi Servo Motor HC-RP153K HCRP153K New
NEW HC-RP153K
Mitsubishi Servo Motor HC-RP153K HCRP153K NEW
The Mitsubishi HC-RP153K is part of Mitsubishi's MELSERVO HC series, classified as an ultra-low inertia servo motor. It features a medium capacity and operates at a supply voltage of 200V AC, delivering a rated output power of 1.5 kW.
| Parameter | Specification |
|---|---|
| Primary Brand | Mitsubishi Electric |
| Main Function | AC Servo Motor |
| Product Series / Family | MELSERVO J3 Series |
| Sub-range Name | HC-RP Series |
| Functions | AC Brushless Rotary Servo Motor |
| Design | Keyed Shaft |
| Feedback Encoder | Built-in Absolute Encoder (18-bit) |
| Additional Features | Oil Seal |
| Motor Type | Ultra-low Inertia / Medium Power Capacity |
| Supply Voltage (AC) | 200 Vac Class |
| Rated Current | 8.8 A |
| Rated Active Power | 1500 W (1.5 kW) |
| Rotational Speed | 3000 rpm |
| Maximum Speed | 4500 rpm |
| Rated Torque | 4.78 Nm |
| Maximum Torque | 11.9 Nm |
| Moment of Inertia | 0.00019 kg·m² (1.9 kg·cm²) |
| Mounting Mode | 100 × 100 mm Flange Mounting |
| Resolution | 18-bit (Equivalent to 260000 ppr) |
| Degree of Protection | IP65 |
