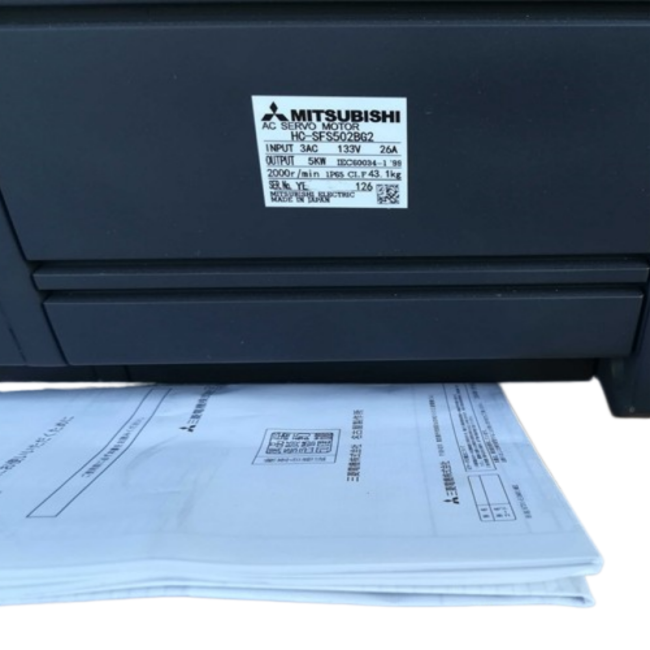

New Mitsubishi Servo Motor HC-SFS502BG2 or HCSFS502BG2
NEW HC-SFS502BG2
New Mitsubishi Servo Motor HC-SFS502BG2 or HCSFS502BG2
AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (17-bit) + oil seal - Mitsubishi Electric (MELSERVO J2S series) - Rated output 5000W / 5kW - 17-bit (equivalent to 131072ppr) feedback - Rated current 26A - Supply voltage 200Vac class - Rated torque 23.9Nm nominal - Rated rotational speed 2000rpm - 176x176mm flange mounting - IP65 - rated for 0...+40°C ambient
| Parameter | Specification |
|---|---|
| Primary Brand | Mitsubishi Electric |
| Main Function | AC Servo Motor |
| Product Series / Family | MELSERVO J2S Series |
| Sub-range Name | HC-SF Series |
| Functions | AC Brushless Rotary Servo Motor |
| Design | Straight Shaft |
| Feedback Encoder | Built-in Absolute Encoder (17-bit) |
| Additional Features | Oil Seal |
| Motor Type | Medium Inertia / Medium Power Capacity |
| Supply Voltage (AC) | 200 Vac Class |
| Rated Current | 26 A |
| Rated Active Power | 5000 W (5 kW) |
| Rotational Speed | 2000 rpm |
| Maximum Speed | 2000 rpm |
| Rated Torque | 23.9 Nm |
| Maximum Torque | 71.6 Nm |
| Moment of Inertia | 0.0101 kg·m² (101 kg·cm²) |
| Mounting Mode | 176 × 176 mm Flange Mounting |
| Resolution | 17-bit (Equivalent to 131072 ppr) |
| Degree of Protection | IP65 |
| Dimensions | H230 mm × W176 mm × D287 mm |
| Net Height | 230 mm |
| Net Width | 176 mm |
| Net Depth | 287 mm |
| Operation Temperature | 0 ~ +40 °C |
SHIPPING INFO:
*** Pls inform us, once you transfer payment by ny form, for us follow up in time.
*** Items are typically sent out 3-5 Working Days, after payment has been received.
Will ship worldwide (Please ask us first if you do not see an exact price for shipping for your country)
* FREE Shipping is not AVAILABLE for the buyers who are from some certain coutires DHL / Fedex are not avaiable for, Pls contact us for the detailed SHIPPING Cost.
Cross-border buyers are responsible for any CUSTOMS DUTY, TAX, etc. imposed by the buyer's home country.
************************************************************************************
PLEASE NOTIFY US WITHIN 10 DAYS, IF YOU HAVE NOT RECEIVED GOODS
&
PLEASE NOTIFY US AT THE SAME/ NEXT DAY, IF GOODS ARRIVE DAMAGED / NOT COMPLETE / NOT DESCRIBED
************************************************************************************
We DO COMBINE SHIPPING on multiple purchases!
Local Pickup Available
WARRANTY & RETURN:
** THREE Months WARRANTY for the Used goods**
** SIX Months WARRANTY for the New / Unused goods**
** Buyer Pays the Return Shipping Cost of Warranty **
*** We Accept RETURNS if goods arrive DAMAGED / NOT DESCRIBED / NOT COMPLETE.
*** We Accept RETURNS if goods are NOT WORKABLE in 4 Days After Goods Arrive.
.*** We do not offer Warranty, if after buyer collect goods, it become Physically Damaged or Improper Operated.
*** We do not accept RETURNS because the Wrong item was purchased or the buyer has changed their Mind.
***The Return goods must be in Original Same as we Sent with the Warranty Label On.
