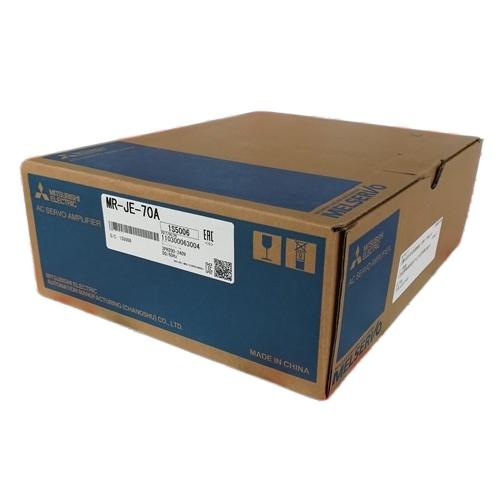

MITSUBISHI New MR-JE-70A
New Mitsubishi Servo Drive Module MR-JE-70A or MRJE70A Large Stock
The MR-JE-70A from Mitsubishi Electric is a high-performance 200V class AC servo amplifier designed for precision motion control in CNC machines and industrial automation systems. Built with advanced sine-wave PWM control and high-resolution encoder support, this compact drive delivers stable torque, fast response, and reliable long-term operation.
| Specification Item | Details |
|---|---|
| Output Power | 0.75 kW (Approx. 750 W) |
| Rated Output Current | Approx. 5.8 A at 170 VAC (Three-Phase Output) |
| Input Power | 1-Phase or 3-Phase, 200–240 VAC, 50/60 Hz |
| Permissible Input Voltage Range | 170–264 VAC |
| Control Method | Sine-Wave PWM & Current Control |
| Built-in Functions | Dynamic Brake & Regenerative Resistor (~20 W Rating) |
| Encoder Resolution | Up to 131,072 Pulses per Revolution |
| Communication Interfaces | USB (MR Configurator2), RS-422, RS-485 |
| Dimensions (W × H × D) | Approx. 70 × 168 × 185 mm |
| Weight | Approx. 1.5 kg |
| Operating Temperature | 0°C to 55°C |
| Operating Humidity | Up to 90% RH (Non-Condensing) |
| Storage Temperature | -20°C to 65°C |
| Protection Rating | IP20 (Indoor Use Only) |
The Mitsubishi MELSERVO-JE or MELSERVO MR-JE series of servo amplifiers includes servo amplifier models with a variety of features. These features include an auto-tuning feature, which automatically adjusts the settings of the servo amplifier to meet the load rating of the connected servo motor and eliminates the need for manual adjustment. The MR-JE servo amplifiers support general-purpose interfaces, and they can be used in a variety of general-purpose servo motor control applications.
WE HAVE THOSE IN STOCK
| Col 1 | Col 2 | Col 3 | Col 4 | Col 5 | Col 6 |
|---|---|---|---|---|---|
| Q02HCPU | QJ71C24N | QD75MH1 | A1SX42 | Q38B | QY42P |
| QY40P | QJ71E71-100 | Q06UDVCPU | QD77MS16 | Q00UCPU | QC100B |
| Q6BAT | Q7BAT | Q7BAT-SET | Q6DIN1 | Q6DIN2 | Q6DIN3 |
| Q2MEM-1MBS | Q2MEM-2MBS | Q2MEM-2MBF | Q2MEM-4MBF | Q2MEM-8MBA | Q2MEM-16MBA |
| Q2MEM-32MBA | QX10 | QX28 | QX40 | QX40-S1 | QX41 |
| QX41-S1 | QX42 | QX42-S1 | QX70 | QX71 | QX72 |
| QX80 | QX81 | QX82 | QX82-S1 | QY10 | QY18A |
| QY22 | QY40P | QY41P | QY42P | QY50 | QY68A |
| QY70 | QY71 | QY80 | QY81P | Q64AD | Q68ADV |
| Q68ADI | Q62DA | Q64DA | Q64AD-GH | Q62AD-DGH | Q62AD-FG |
| Q64RD | Q64RD-G | Q64TCTT | Q64TCTTBW | Q64TCRT | Q64TCRTBW |
| QD75P1 | QD75P2 | QD75P4 | QD75D1 | QD75D2 | QD75D4 |
| QD75M1 | QD75M2 | QD75M4 | QD75P8 | QJ71E71-B2 | QJ71E71-B5 |
| QJ71E71-100 | QJ71LP21-25 | QJ71LP21S-25 | QJ71LP21G | QJ71LP21GE | QJ72LP25-25 |
| QJ72LP25G | QJ72LP25GE | QJ71BR11 | QJ71BR15 | Q80BD-J71LP21-2 | Q80BD-J71LP21G |
| Q80BD-J71BR11 |
