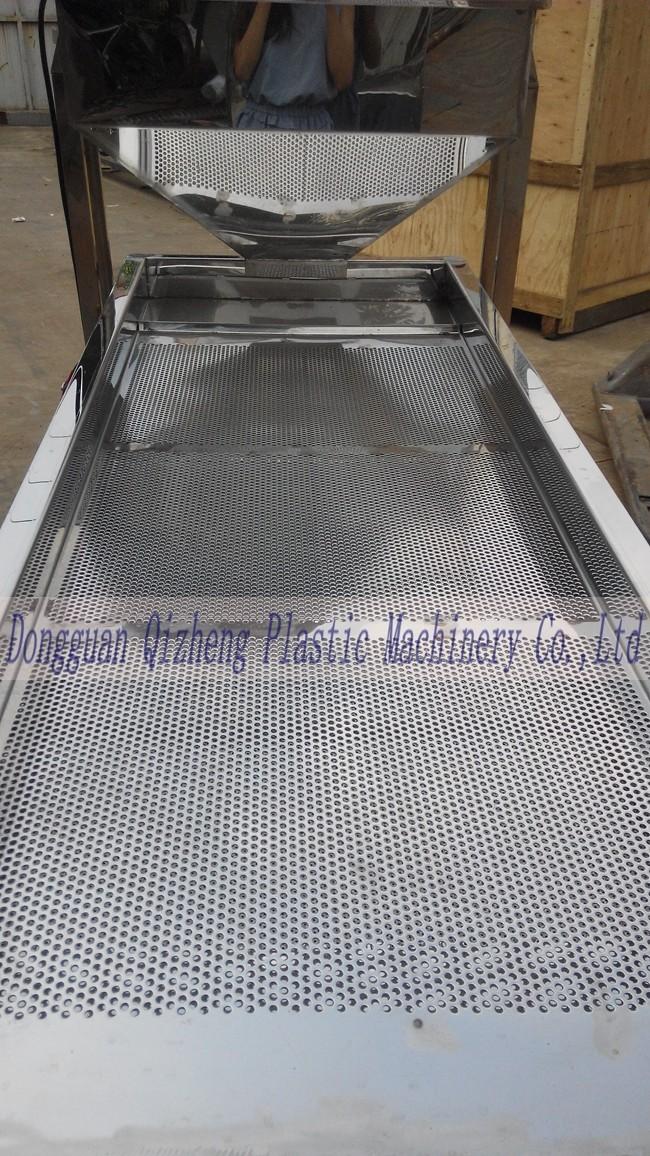

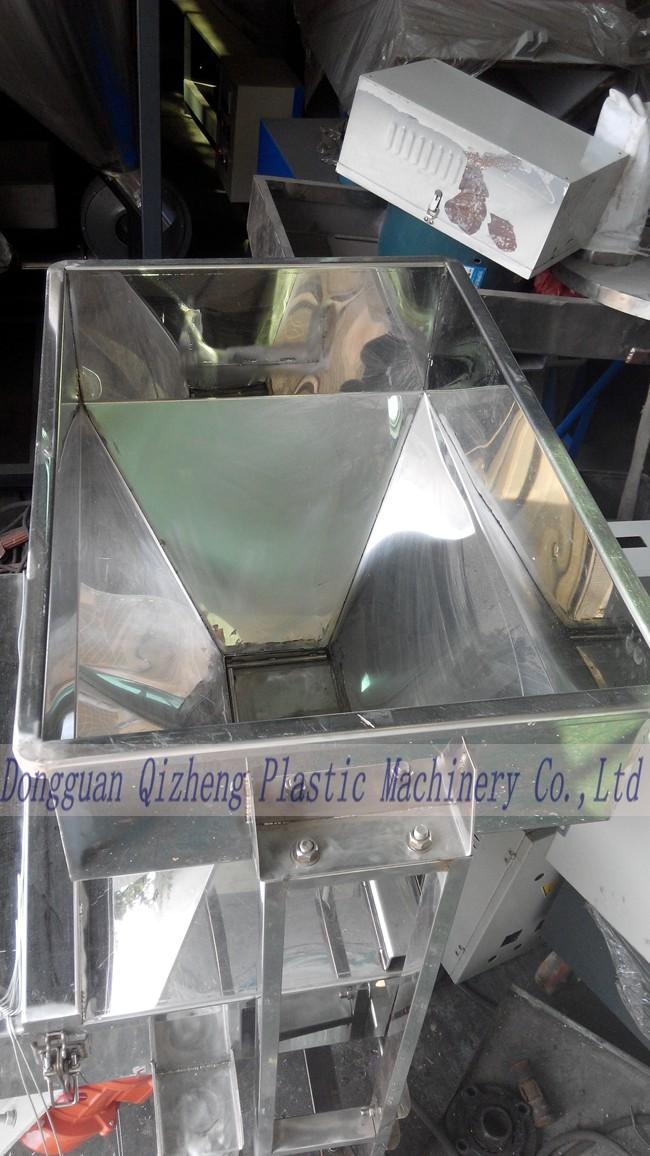

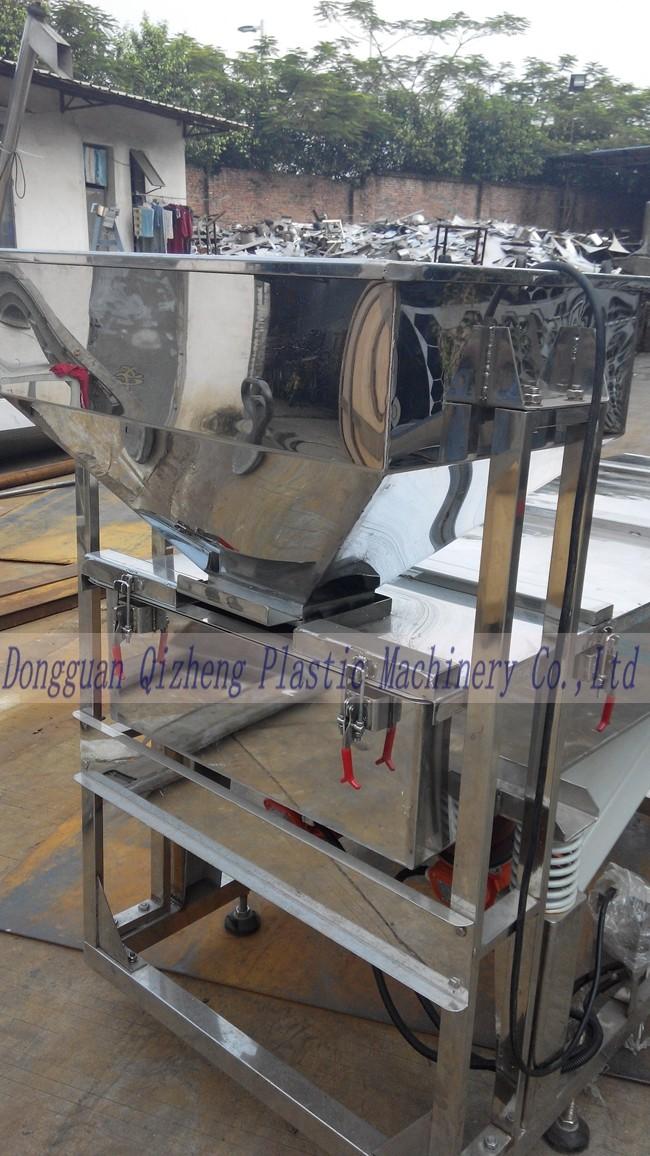

Food Grade Stainless Steel Linear Vibrating Sieve Screen Machine For Sugar

Working principle:

Linear Vibrating Sieve Screen Machine uses double vibrating motors to drive,when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear.There is an angle of inclination between the two motor axises relative to the screen deck. Under the influence of the resultant force of exciting force and materiels itself weight,materiels are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatical operation.

1. Multi layers structure is optional for multi grades screening.

2. Fully sealed structure is optional, no dust spillover.
3. Low energy consumption, high efficiency.
4. Simple structre, easy to maintain.

Linear Vibrating Sieve Screen Machine is suitable to screen and grade the powder or granule,and widely used to many industries ,such as plastic, grinding , chemical, medicine, building materiel , food ,carbon and chemical fertilizer etc.
