High Viscosity Polyurethane Mixing Equipment , Homogenizer Industrial Paint Mixers
3000KG Output Industrial Specific Chemical Powder Homogenizer Mixing Machine
Application:
It is widely used in industrial production like Powder, viscosity material or cohesive powders,or mushy materials or powders add liquid materials. Coating, Dry Mortar, Amuscular, and Thermal Insulation Materials, etc.
Composition:

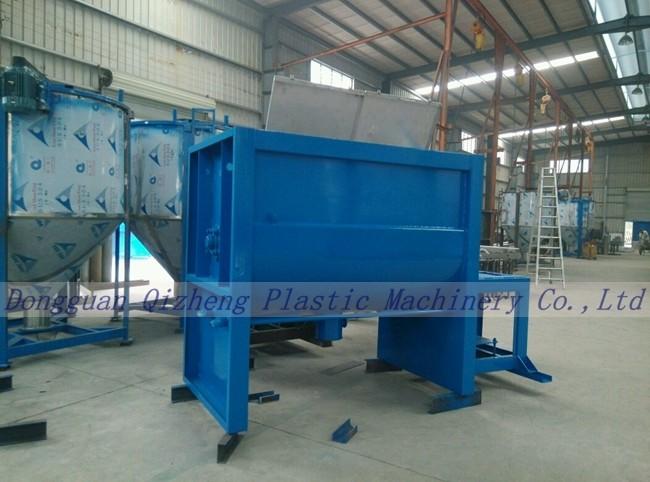

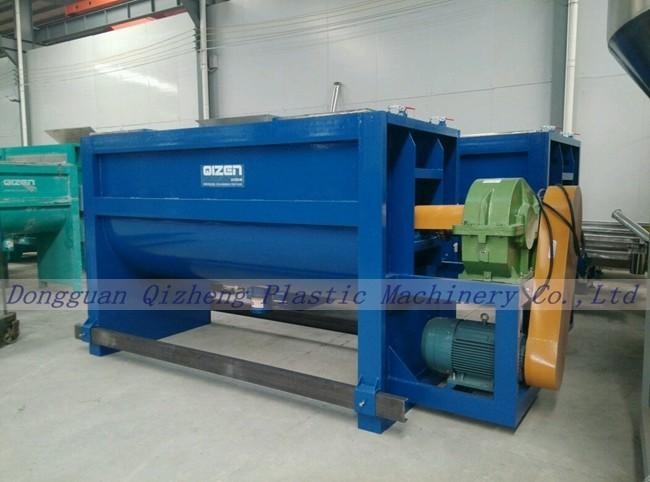

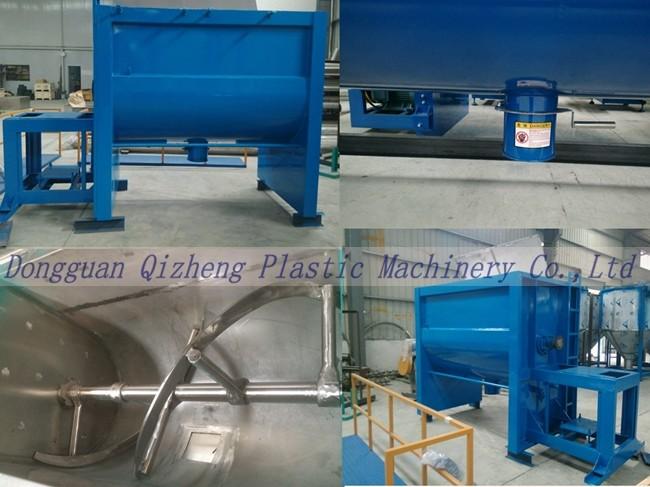

It consists of U-vessel, ribbon blade, transmission parts.
Working Principle:
The blade is usually single layer,double layers or three layers,the outer spiral ribbon concentrates the materials from the side to the centre while the inner spiral ribbon transports the matetials from centre to side, shape the convective mixing.
Features:
It can provide favorable performance to the mixing of viscosity substances, or powder particles in coherency property, and the mixing of liquid or pasty substances into powder particles. The cover can be full open or enplas, it is easy to clean or maintenance machine.
Technical Parameter:
| Model Project | QZ-W3000 |
| Mixing Capacity | 3 Ton |
| Power | 30KW-6 |
| Dimension of Mixing Tank | L2600*W1500*H1700mm |
| Material of Mixer | 201SS / 304SS / 316L / carbon steel |
| Volume | 6000L |
| Heating Function | Customized |
