Brief introduction of the circular vibrating screen
YK series vibrating screen are well-suited for high-tonnage operations such as coal and minerals processing, or large-scale aggregates production. They can screen dry material or, with the addition of water spray pipes, handle wet or dry material and thoroughly rinse it while screening. This vibratory screen is characteristic of advanced structure, maximum strength frame, heavy eccentric shaft enhances the screen stroke.
Application:

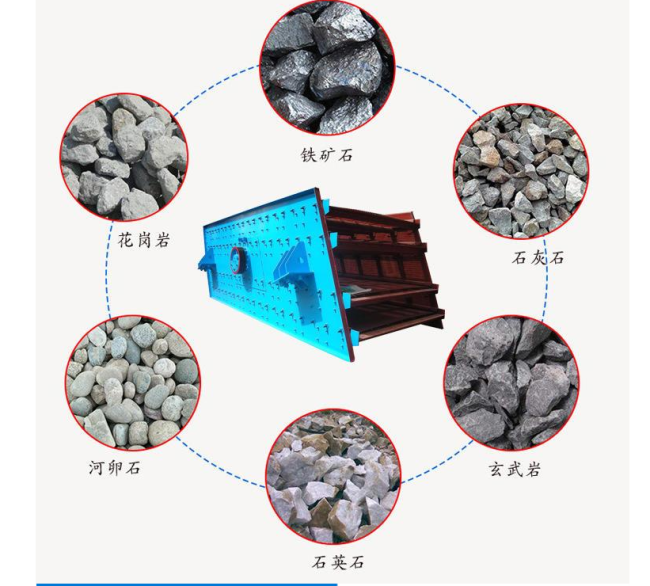

Quarry, Building material, Transportation, Energy, Chemistry, etc.
Advantages:
Advanced structure, powerful exciting force
Big vibration strength
Small initial vibratory output
Stable resonance region
Screen mesh is seldom block
Improved working environment due to small noise
Easy repairing, sturdy and durable
Main technical parameters of Circular Vibrating Screen:
| model | screen layer | max feeding sizes | capaciy | double amplitude | power | vibrating frequency | mesh specifications | weight | overall isze | screen mesh size |
| 2YK1237 | 2 | 400MM | 16-90m³/h | 8 | 11kw | 960r/min | 1200*3700mm |
3600kg
|
4010*1900*1195mm | 4-50mm |
| 2YK1237 | 3 | 400mm | 16-90m³/h | 8 | 11kw | 960r/min | 1200*3700mm | 4200kg |
4010*1900*1650mm
|
4-50mm |
| 2YK1548 | 2 | 400 | 225-162m³/h | 8 | 15kw | 870r/min | 1500*4800mm | 5900kg | 5110*2170*1195mm | 5-50mm |
| 3YK158 | 2 | 400 | 225-162m³/h | 8 | 15kw | 870r/min | 1500*4800mm | 6500kg | 5110*2170*1650mm | 5-50mm |
| 2YK1848 | 2 | 400 | 32-276m³/h | 8 | 18.5kw | 870r/min | 1800*4800mm | 7000kg | 5110*2470*1195mm | 5-80mm |
| 3YK1848 | 3 | 400 | 32-276m³/h | 8 | 18.5kw | 870r/min | 1800*4800mm | 7600kg | 5110*2470*1650mm | 5-80mm |
| 2YK2160 | 2 | 400 | 81-720m³/h | 8 | 30kw | 730r/min | 2100*6000mm | 9700kg | 6260*2980*1380mm | 5-100mm |
| 3YK2160 | 3 | 400 | 81-720m³/h | 8 | 30kw | 730r/min | 2100*6000mm | 11800kg | 6260*2980*1780mm | 5-100mm |
| 2YK2460 | 2 | 400 | 90-810m³/h | 8 | 37kw | 770r/min | 2400*6000mm | 13500kg | 6260*3280*1900mm | 5-100mm |
| 3KY2460 | 3 | 400 | 90-810m³/h | 8 | 37kw | 770r/min | 2400*6000mm | 15000kg | 6260*3280*1910mm | 5-100mm |
Working Principle
YK series circular vibrating screen is a multi-layers arc vibarting screening equipment. This machine has big screening area, and can give more different screen size. The material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet respectively. It can be used in the automatic production line.
Our Services
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
