2022 Rotary Drum Dryer for Gypsum, Sand, Coal, Cement, Slag, Slurry, Limestone, Ore Powder, Rotary Dryer Factory Price
2022 Rotary Drum Dryer for Gypsum, Sand, Coal, Cement, Slag, Slurry, Limestone, Ore Powder, Rotary Dryer Factory Price
Sewage rotary dryer
Rotary Dryer Introduction:
Our mineral rotary dryer is special designed for drying various mineral raw materials. The external drying host adopts multi-layer heat preservation technology. According to the characteristics of mineral materials, special lifting and cleaning devices are set inside to prevent materials from sticking to the wall, fully realize mass and heat exchange. The mineral materials can be dried quickly with low cost. The drying time and temperature can be controlled in the whole process. Besides, the operation cost is greatly reduced, and the comprehensive economic benefit is improved.
Specifications
new designed high quality and durable competitive rotary dryer:
1.Used for coal,cement,ore drying
2.Fast delivery
3.OEM
2.Description of rotary dryer:

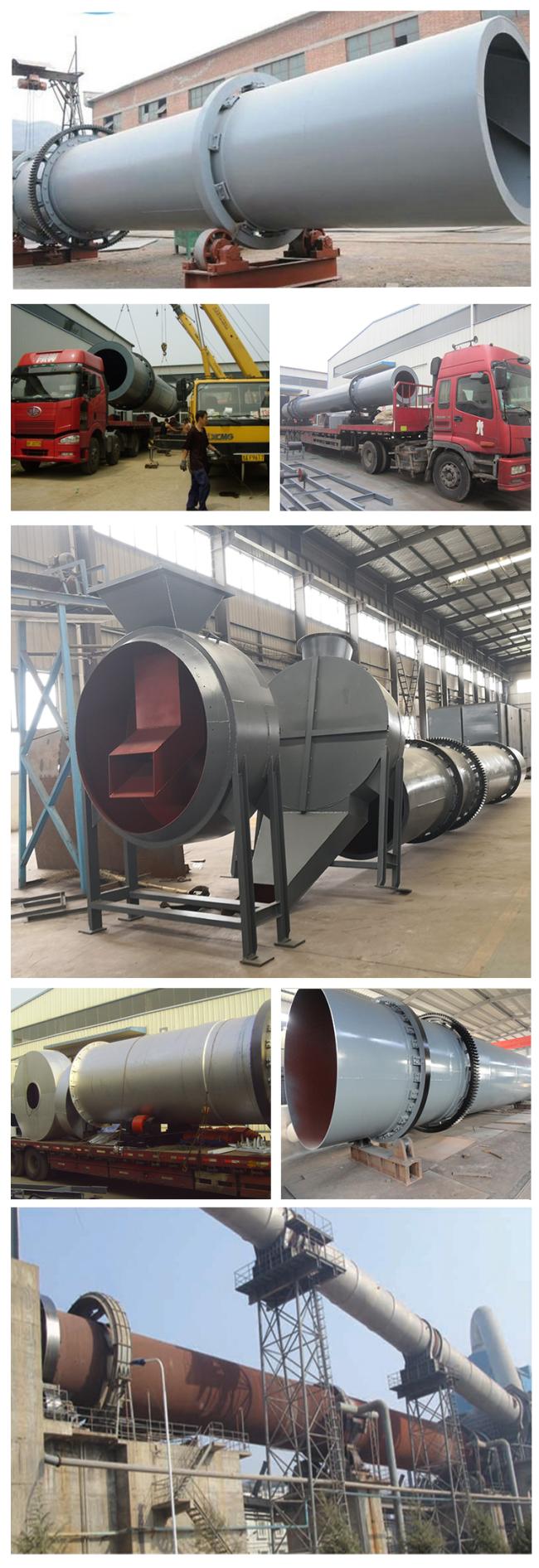

The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
3.Application of rotary dryer:
Rotary dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. Rotary dryer are widely used in building materials,metallurgy, and chemical industry. Rotary dryer is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube,the dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.
4.Working Principle of rotary dryer:
Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.
|
lope(%) |
rotation speed(r/min) |
input temperature(º C) |
motor power(kw) |
output(t/h) |
weight(t) |
|
|
Φ 600× 6000 |
3-5 |
3-8 |
≤ 700 |
3 |
0.5-1.5 |
2.9 |
|
Φ 800× 8000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.0 |
3.5 |
|
Φ 800× 10000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.5 |
4.5 |
|
Φ 1000× 10000 |
3-5 |
3-8 |
≤ 700 |
5.5 |
1.0-3.5 |
5.6 |
|
Φ 1200× 10000 |
3-5 |
3-8 |
≤ 700 |
7.5 |
1.8-5 |
14.5 |
|
Φ 1200× 12000 |
3-5 |
3-8 |
≤ 700 |
11 |
2-6 |
14.8 |
|
Φ 1500× 12000 |
3-5 |
2-6 |
≤ 800 |
15 |
3.5-9 |
17.8 |
|
Φ 1800× 12000 |
3-5 |
2-6 |
≤ 800 |
18 |
5-12 |
25 |
|
Φ 2200× 12000 |
3-5 |
1.5-6 |
≤ 800 |
18.5 |
6-15 |
33 |
|
Φ 2200× 18000 |
3-5 |
1.5-6 |
≤ 800 |
22 |
10-18 |
53.8 |
