High pressure Arab popular shicha hookah charcoal coal 25*25*25mm cubic briquettes making machine

Price Negotiable
Price: USD 5000-15000 per set
MOQ: 1 set
Delivery Time: 7-15 working days
Brand: Sinolion
Product Description

High pressure Arab popular shicha hookah charcoal coal 25*25*25mm cubic briquettes making machine



Brief Introduction:

Shisha charcoal machine is specilize in make shisha hookah briquettes. This machine use hydraulic principle, owing to the pressure is very large, so it can press good quality final product, so does the briquette quality is very good, our machine use PLC system, and about the product line, we can achieve all automatic production, of course, if you are beginner, want lower invest, we also can offer you semi-automatic production line. Machine include PLC system, hydraulic cylinder, conveyor, molds and main machine.

Main parameters:

Model Mechanical Hydraulic

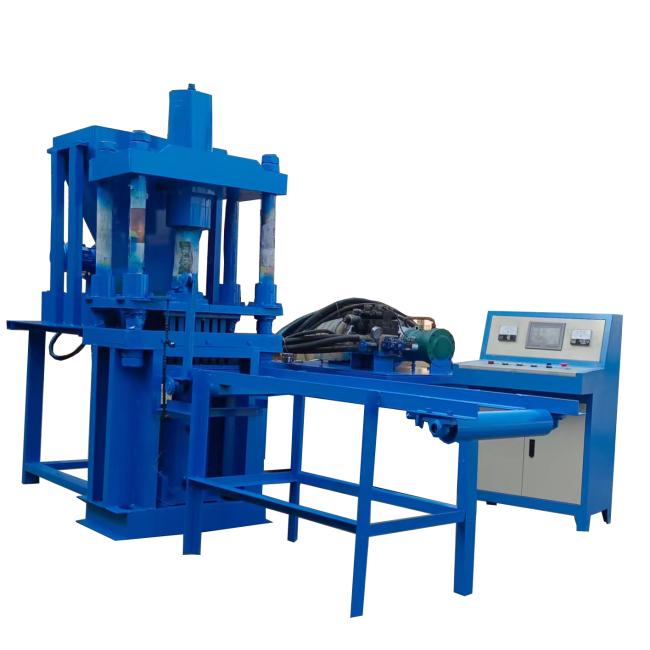

Technical parameter Type : mechanical shisha charcoal making machine Name:Hydraulic pressure shisha charcoal making machine
  Component: shisha machine

Component: Shisha machine, PLC Electric control cabinet,

Hydraulic pump

  Motor power: 7.5kw Motor Power(kw): 15kw; conveyor power (kw): 0.75kw; Feeding power(kw): 0.75kw
  Shape: cubic, tablet round, hexagon Shape :Cube, tablet round, hexagon
  Final briquette size: according to customized Final briquettes size: customized


Capacity: 10-15pieces/time

22times/min, about 600-800kg/h

Capacity: Cube 44 pieces/time, 3-5 times/min

Tablet round shape: 38 pieces, 3-5 pieces/min

hexagon shape: 26pieces, 3-5pieces/min

About 600-800kg/h

  Pressure: 20-30t Pressure: 100-120t
  Press type: piston Press type: Hydraulic press
  3500*1200*1750mm

DimensionMachine:2.1m*1m*2m

PLC Electric control cabinet: 900mm(L)*550(W)*1100(H)

Hydraulic pump:1300*900*1200

Conveyor:1500mm

Festures:

(1) NO binder needed during production to make clean & green fuel briquette.
(2) Quantity of heat of final product is 500-1000Kcal higher than raw material.
(3) Can replace firewood and liquefaction gas, with less investment.
(4) Small cubage and easy for transport.
(5) Adopt high-speed, high-frequency stamping technique, ensure the stability of the molding.

shisha charcoal briquette machine Can Make

1.Size and shapes:
1) Size: round: 20-45mm, square: 15-55mm
2) Shape: round, square, restabgle, triangle, cylinder, diamound, cone, etc.
3) The shape of briquettes can be customized.
2. Characteristics:
1) The shisha charcoal briquettes use quick burning charcoal technology, can burn from the top to down.
2) Firepower fierce, smokeless, tasteless, non-toxic, long burning time.
3) Square shape shisha charcoal can burn for about 1-1.5 hours.
4) Round tablet shisha charcoal can burn for about 40 minutes.



Application:



The Shisha tablet press is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc.

Shape and size

Related equipment:

If you want to learn more information, please contact us.
