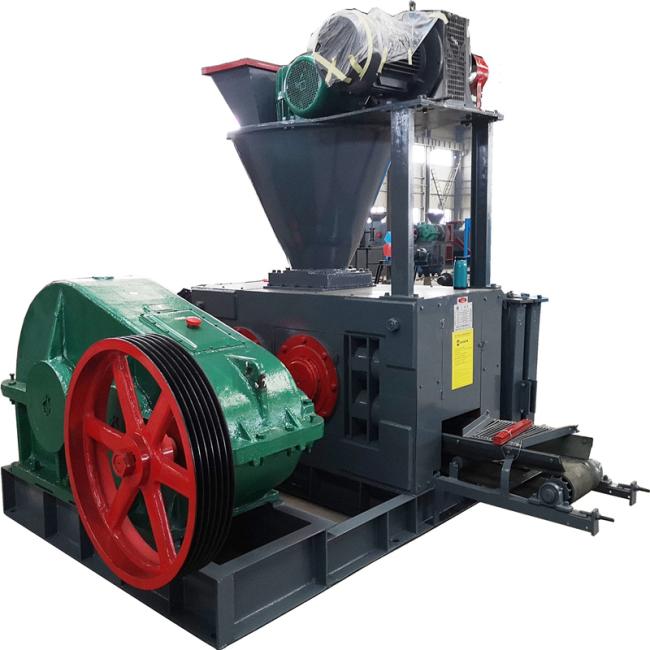

Hydraulic magnesium nonferrous metal powder powder dry powder briquette machine
Hydraulic magnesium nonferrous metal powder powder dry powder briquette machine
Introduction of high pressure hydraulic metal powder dry powder briquette machine:This series high pressure lime dry powder briquette press machine is different from ordinary briquette machine, It's a rolling briquette devices that pressing various dry powder into high bulk density briquettes by preloading device, mainly used in coal, mining, metallurgy, refractory materials, building materials and light metal industries, and it's often press the special material which not allow any water and addtive in briquetting process such as: calcium aluminate, limestone, quicklime, cryolite, chemical fertilizer, magnesium powder,copper powder, chromite ore fines, aluminium dust ,bauxite and graphite powder etc materials.calcium aluminate, limestone, quicklime, cryolite, chemical fertilizer, magnesium powder,copper powder, chromite ore fines, aluminium dust , bauxite and graphite powder etc materials.
Specifications
Main features: High quality;
High-efficiency; Low-consumption,energy saving;
Easy maintaince; Professional design
Main technical parameters:
| Model | YHG0.5 | YHG1.5 | YHG3.0 | YHG5.0 | YHG8.0 | YHG10.0 |
| roller diameter(mm) | dia 299 | dia367 | dia522 | dia738 | dia700 | dia858 |
| roller width(mm) | 180 | 183 | 196 | 210 | 225 | 300 |
| capacity(t/h) | 0.5 | 1.2-1.4 | 2.5-3.0 | 4.5-5.5 | 7.5-8.5 | 8.0-9.5 |
| main reducer | ZQ650 | ZQ850 | ZS1250 | ZS1450 | ZS1650 | ZS1650 |
| main motor(kw) | 18.5 | 37 | 55 | 75 | 90-110 | 110-132 |
| Pre-pressure motor(kw) | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 |
| Pre-pressure reducer | WHC-125 | WHC-160 | CWS-200 | WHC-210 | WHC-210 | WHC-250 |
| Remarks |
1. Above capacity is based on material specific gravity 1.3, briquette size: dia35*20*20mm. 2. Roller material adopts 9Cr2Mo. 3. Pre-pressure motor is speed motor. |
|||||

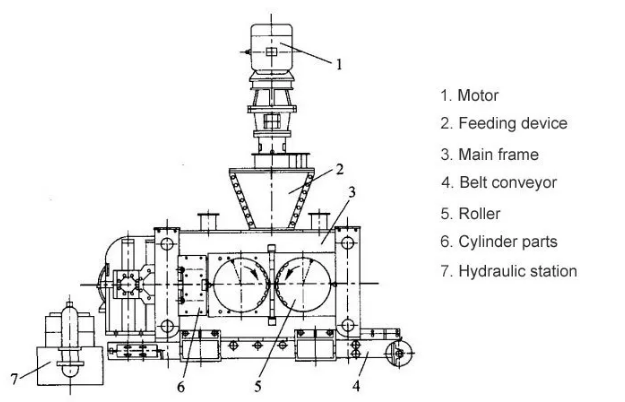

Structures:
Material: metal chip, scrap iron, iron powder, mineral fine,steel slag, rafractory, or other material that need to forge.
Final shape: squal , ball , oval, egg , pillow and so on , we can self-define as our requirement
Our factory
Zhengzhou Berno Machinery Equipment Co., Ltd. is specialized in manufacturing complete equipment for formed coal, ball forming machines and production line for sandstone. With standard modern mill building, first-class advanced technology and inspection equipment, our company manages to improve the products continuously for greater perfection in broad cooperation with the Coal Research Institute and relevant scientific research departments. Renowned in the domestic and foreign markets, the production lines for 10-100 thousand tons of formed are currently exported to Indonesia, Kazakhstan, Vietnam, North Korea, Egypt, and Japan etc., becoming the ideal equipment for production of coal and ball press of powdered ore at home and abroad.
