SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill
Price:
USD1
MOQ:
1
Delivery Time:
7-15 working days
Brand:
SANROCK
Product Description
SRSJ-200 180m 200m WATER WELL DRILLING RIGG water well drill rig shallow water well drilling equipment borehole drill
DESCRIPTION
SRSJ-200 water well drilling rig with light and flexible features for wide market.
Product Features
● Small profile for easy access to narrow job sites.
● Simple but reliable design with adequate rotary torque and lifting force.
● Hoist and winch able to lift drill tools and accessories up to 1,500kgs, reducing workload of operators.
● Rotation with two speed adjustable for different hole ranges and rock conditions.
Product detail show case
![]()

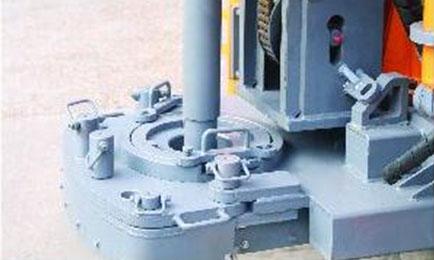

Convenient and flexible positioning mechanism and plate turnover structure, simple and high efficiency.
![]()

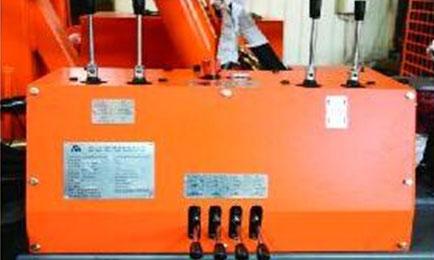

Centralized operation and control system, easy, convenient and high efficiency.
![]()

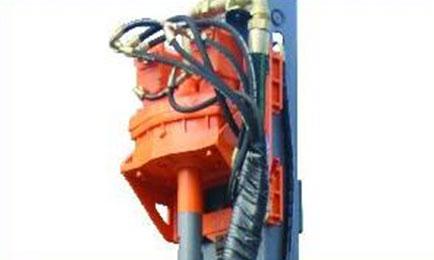

High torque rotation unit with high and low speed switchable and torque up to 5,600 N.m, widely used in large hole DTH drilling and casing.
Product Features
● Small profile for easy access to narrow job sites.
● Simple but reliable design with adequate rotary torque and lifting force.
● Hoist and winch able to lift drill tools and accessories up to 1,500kgs, reducing workload of operators.
● Rotation with two speed adjustable for different hole ranges and rock conditions.
Product detail show case
Convenient and flexible positioning mechanism and plate turnover structure, simple and high efficiency.
Centralized operation and control system, easy, convenient and high efficiency.
High torque rotation unit with high and low speed switchable and torque up to 5,600 N.m, widely used in large hole DTH drilling and casing.
SPECIFICATION
SRSJ-200 TECHNICAL SPECIFICATION
| transportation size | 5400*1900*2500mm |
| machine weight | 5.7t |
| engine | yuchai YCD4R22T-80(59kw) |
| climbing ability | 25° |
| ground clearance | 280mm |
| tramming speed | 2.4km/h |
| rod/pipe type | φ76mm*3m / 89mm*3m |
| hole depth | 180m |
| drill pipe diameter | φ110-200mm |
| rotation torque | high: 2,800N.m / slow:5,600N.m |
| rotation speed | high:0-80 r/min / slow:0-40 r/min |
| feed type | oil clinder + chain |
| feed force | 24KN |
| pull up force | 70KN |
| winch pull up force | 1.5t(standard configuration) |
| the travel of support jack oil cylinder | 1400mm |
| angle meter | standard configuration |
| reverse shaft pressure device | standard configuration |
==============================================
please feel free contact us, whatsapp/wechat::008615021099979
====================================================
FY600/F800 CRAWLER WATER WELL DRILLING RIG
FY600/F800 Crawler Water Well Drilling Rig
DESCRIPTION
600M 800M depth Water Well Drilling Rig
Product Features
● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
SPECIFICATION
FY600 CRAWLER WATER WELL DRILLING RIG
| Drilling Depth | 600m |
| Drilling Diameter | 140-350mm |
| One-Time Advance Length | 6.60m |
| Walking Speed | 2.50km/h |
| Climbing Angles | 30 degree |
| Engine Power | 118KW |
| Work Air Pressure | 1.7-3.5 Mpa |
| Air Consumption | 17-42m3/min |
| Drill Pipe Length | 2m, 3m, 6m |
| Drill Pipe Diameter | 102mm, 108mm, 114mm |
| Rig Lifting Force | 28 ton |
| Rotary Speed | 45-115 rpm |
| Rotary Torque | 8500-11000 N.m |
| Weight | 12000KG |
| Dimensions | 6000*2200*2850mm |
FY800 CRAWLER WATER WELL DRILLING RIG
| Drilling Depth | 700m |
| Drilling Diameter | 140-400mm |
| One-Time Advance Length | 6.60m |
| Walking Speed | 2.50km/h |
| Climbing Angles | 30 degree |
| Engine Power | 140KW |
| Work Air Pressure | 1.7-3.5 Mpa |
| Air Consumption | 17-42m3/min |
| Drill Pipe Length | 2m, 3m, 6m |
| Drill Pipe Diameter | 102mm, 108mm, 114mm |
| Rig Lifting Force | 30 ton |
| Rotary Speed | 55-120 rpm |
| Rotary Torque | 8850-13150 N.m |
| Weight | 13000KG |
| Dimensions | 6100*2200*2900mm |
==================================================================================
please feel free contact us, whatsapp/wechat::008615021099979
=====================================================
FY600 CRAWLER WATER WELL DRILLING RIG
| Drilling Depth | 600m |
| Drilling Diameter | 140-350mm |
| One-Time Advance Length | 6.60m |
| Walking Speed | 2.50km/h |
| Climbing Angles | 30 degree |
| Engine Power | 118KW |
| Work Air Pressure | 1.7-3.5 Mpa |
| Air Consumption | 17-42m3/min |
| Drill Pipe Length | 2m, 3m, 6m |
| Drill Pipe Diameter | 102mm, 108mm, 114mm |
| Rig Lifting Force | 28 ton |
| Rotary Speed | 45-115 rpm |
| Rotary Torque | 8500-11000 N.m |
| Weight | 12000KG |
| Dimensions | 6000*2200*2850mm |
FY800 CRAWLER WATER WELL DRILLING RIG
| Drilling Depth | 700m |
| Drilling Diameter | 140-400mm |
| One-Time Advance Length | 6.60m |
| Walking Speed | 2.50km/h |
| Climbing Angles | 30 degree |
| Engine Power | 140KW |
| Work Air Pressure | 1.7-3.5 Mpa |
| Air Consumption | 17-42m3/min |
| Drill Pipe Length | 2m, 3m, 6m |
| Drill Pipe Diameter | 102mm, 108mm, 114mm |
| Rig Lifting Force | 30 ton |
| Rotary Speed | 55-120 rpm |
| Rotary Torque | 8850-13150 N.m |
| Weight | 13000KG |
| Dimensions | 6100*2200*2900mm |
