0.75hp Domestic Electric Water Transfer Pump With Aluminum Housing , SGS ISO Listed
0.75hp Domestic Electric Water Transfer Pump With Aluminum Housing , SGS ISO Listed
APPLICATIONS
- domestic water supply and tank filling
- sucking water from a deep well
- pressure boosting tap water
- irrigating gardens and fields
- water transfer
WORKING CONDITION:
- Liquid temperature up to +40oC
- Ambient temperature up to +40oC
- PH:6.5 to 8.5
INSTALLATION CONDITION
- Zhongzhi vortex water pumps should be installed in a dry and covered area, protected against the weather.
STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
| Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||

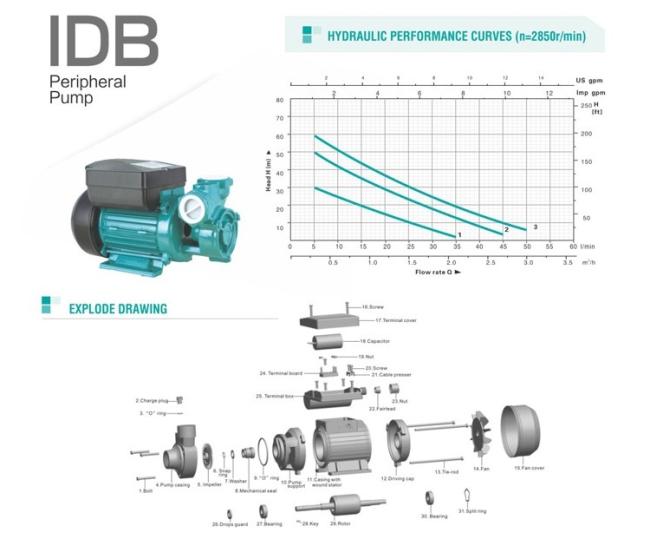

Electric Motor Water Pump TECHNICAL DATA
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
| IDB-35 | 0.5 / 0.37 | 1.6 | 2850 | 35 | 35 | 9 | 1"x1" | 285x150x185 | 5.4 |
| IDB-40 | 0.75 / 0.55 | 3.6 | 2850 | 45 | 50 | 9 | 1"x1" | 335x180x200 | 9.6 |
| IDB-50 | 1 / 0.75 | 4.8 | 2850 | 50 | 55 | 9 | 1"x1" | 335x180x200 | 10.2 |
| IDB-60 | 1.5 / 1.1 | 6.2 | 2850 | 60 | 70 | 9 | 1½ "x1½" | 425x200x225 | 22 |
Electric Motor Water Pump ADVANTAGE
100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty
Electric Motor Water Pump GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ
1. Q: How about the MOQ?
A: Usually, it is 100 PCS for each model.
2.Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006
3. Q: Can you do OEM?
A: Yes, we can. Any OEMs are welcome!
4. Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5. Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6. Q: How about the warranty?
A: 1 year from shipped on board date.
