Africa Market Single Phase Induction Motor With Safety Performance For House Pool Pump
Africa Market Single Phase Induction Motor With Safety Performance For House Pool Pump
Pool Pump Motor DESCRIPTION:
MYT series single-phase induction motor power range from 0.75HP to 2HP; It is widely demanded in pools, such as swimming pool pumps, bath pumps, etc.
Pool Pump Motor TECHNICAL DATA:
| Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | T start/Tn | Tmax/Tn | |
| HP | KW | |||||||||
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 |
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |
APPLICATIONS:
MYT series high efficiency single-phase capacitor-run asynchronous aluminum housing house pool pumps are ideal for a medium water head requirement in a domestic pool and light commercial use.
CONTRAST ADVANTAGE:
1. Single phase induction motor with built-in thermal protection
2. Complete separation of water and the axis, safe and reliable
3. Glass-loaded Noryl impeller.
4. AISI 420 stainless steel motor shaft
OPERATING LIMITS:
Ambient temperature:-15℃≦0≦40℃
Protection:IP44/IP54/IP55
Insulation Class: B/F/H
Rated voltage:380V or any voltage between 220-760V
Frequency:50HZ/60HZ
Duty: S1(continuous)
Above sea level: not exceed 1000m
Cooling method: ICO141
Connection:star-connection for up to 4HP,
delta-connection for 5HP and above.

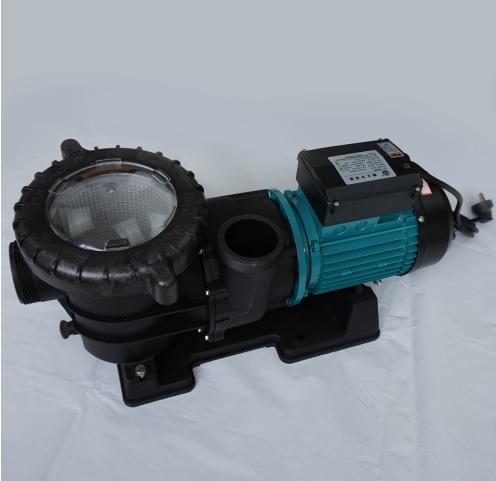

Pool Pump Motor
Pool Pump Motor GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Pool Pump Motor OUR SERVICE
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
INFORMATION
Motor bearing heating analysis
(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.
(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.
(3) improper lubrication system leads to bearing heating due to poor lubrication
(4) bearing heating caused by motor temperature rise or operating environment temperature.
INFORMATION
Motor bearing heating analysis
(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.
(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.
(3) improper lubrication system leads to bearing heating due to poor lubrication
(4) bearing heating caused by motor temperature rise or operating environment temperature.
