IE3 MS112M-2 4KW 5.5HP 400V Aluminum Housing Motors Efficiency Standards
IE3 MS112M-2 4KW 5.5HP 400V Aluminum Housing Motors Efficiency Standards
IE3 Motor SPECIFICATION: technical Specifications
This series of Energy-saving type motors are general usage low voltage cage type three-phase induction motors with single speed, totally enclosed fan cooled continuous working duty. The motors are suitable for situations without a particular requirement, can drive all kinds of general mechanical equipment, and are widely used for machine tools .fan, compressor, transporter, conveyor, mixer, printing machine, agriculture, and packing machine.
IE3 Motor OPERATING CONDITION:
Rated Power: 4KW
Rated Frequency: 60Hz
Rated voltage: 230/400V
Casting Material: Iron
Cooling Method: IC411
Protection Class: IP55
Design: can be customized by customers' requirements
|
Mfr Number:
|
MS112M-2 |
|
Min. Ambient Temp.:
|
-15℃
|
| Power | 4kw |
|
Max. Ambient Temp.:
|
40℃
|
|
Altitude:
|
less than 1000m
|
|
HZ:
|
60HZ
|
|
Voltage:
|
230/400V
|
|
Insulation Class:
|
B, F
|
|
Protection class:
|
IP54, IP55
|
|
Motor Design:
|
3-Phase Induction Motor
|
|
Center height of frame:
|
132MM
|
|
Duty:
|
Continuous (S1)
|
|
Motor Enclosure Design:
|
Enclosed Fan-Cooled
|
|
Frame Material:
|
Aluminum Housing |
|
Appearance color:
|
Blue/Grey/customized color is available
|
|

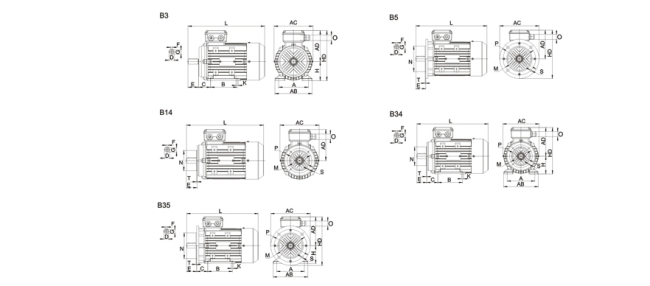

Mounting Position:
|
IM B3 (Foot type) / IM B5 (Flange type) /
IM B35 (Foot & flange type)
|
PERFORMANCE CHART:
IE3 Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
