Three Phase Induction IE3 Motor 2 Poles IE3-802-2 1.1KW Premium Efficiency 60Hz
IE3-802-2 1.1KW Premium Efficiency IE3 Motor Three Phase Induction Motor Pole2
IE3 premium efficiency motors on YouTuBe
Low voltage squirrel-cage IE3 premium efficiency motors are suitable for a wide range of standard drive tasks in the industrial environment. Thanks to their low weight, they are predestined for applications in pumps, fans, compressors, conveyor systems, and lifting gear.
| Model | Output KW | Voltage | Current | Speed | Eff | Power | LRT/RLT | LRA/RLA | BDT/RT |
| (V) | (A) | (r/min) | (%) | Factor | |||||
| IE3-802-2 | 1.1 | 400 | 2.31 | 2890 | 82.7 | 0.83 | 2.2 | 7.3 | 2.3 |

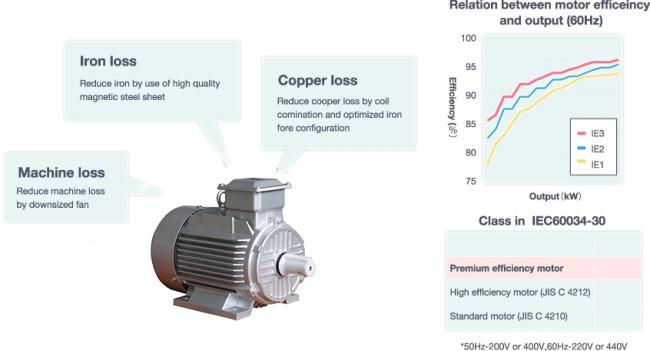

Performance Chart:
Performance comparison chart:
| ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM | ||||
| Power(kw) | eff2 (nominal) | eff1(nominal) | IE2 (nominal) | IE3 (nominal) |
| 0.75 | - | - | 77.4 | 80.7 |
| 1.1 | 76.2 | 82.8 | 79.6 | 82.7 |
| 1.5 | 78.5 | 84.1 | 81.3 | 84.2 |
| 2.2 | 81 | 85.6 | 83.2 | 85.9 |
| 3.0 | 82.6 | 86.7 | 84.6 | 97.1 |
| 4.0 | 84.2 | 87.6 | 85.8 | 88.1 |
| 5.5 | 85.7 | 88.6 | 87.0 | 89.2 |
| 7.5 | 87 | 89.5 | 88.1 | 90.1 |
| 11 | 88.4 | 90.5 | 89.4 | 91.2 |
| 15 | 89.4 | 91.3 | 90.3 | 91.9 |
| 18.5 | 90 | 91.8 | 90.9 | 92.4 |
| 22 | 90.5 | 92.2 | 91.3 | 92.7 |
| 30 | 91.4 | 92.9 | 92.0 | 93.3 |
| 37 | 92 | 93.3 | 92.5 | 93.7 |
| 45 | 92.5 | 93.7 | 92.9 | 94.0 |
| 55 | 93 | 94 | 93.2 | 94.3 |
| 75 | 93.6 | 94.6 | 93.8 | 94.7 |
| 90 | 93.9 | 95 | 94.1 | 95.0 |
| 110 | 94.3 | 95.2 | ||
| 132 | 94.6 | 95.4 | ||
| 160 | 94.8 | 95.8 | ||
| 200...375 | 95 | 95.8 | ||
TECHNICAL CHARACTERISTICS
| Ambient temperature: | -15 °C ≤ θ ≤ 40 °C |
| Above sea level: | not exceed 1000m |
| Rated Voltage: | 400V, 220~760V is available |
| Rated Frequency: | 50HZ or 60HZ |
| Insulation Class: | Class B/F/H |
| Protection Class: | IP54/55/56 |
| Duty: | S1 |
IE3 Motor Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
IE3 Motor Our Service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
