IP54 3KW IE3 Motor Cast Iron Body Material 2890Rpm Speed 2 Poles IE3-100L-2
IP54 3KW IE3 Motor Cast Iron Body Material 2890Rpm Speed 2 Poles IE3-100L-2
| Model NO.: IE3-100L-2 |
| Operating Speed: Low Speed |
| Species: IE3 Premium Efficiency Motor Three-Phase |
| Casing Protection: Closed Type |
| Starting Mode: Direct online Starting |
| Brand: ZOZHI |
| Voltage:400V |
| Protection Class: IP55/IP55 |
| Transport Package: Carton |
| Origin: NINGDE, China |
| Application: Industrial, Universal, Household Appliances, Power Tools |
| Number of Stators: Three-Phase |
| Rotor Structure: Squirrel-Cage |
| Number of Poles: 2 |
| Certification: ISO9001, CCC, CE |
| Rated Power: 3KW |
| Frequency:60Hz |
| Mounting Position: Imb3/B5/B35/B14/B34 |
| Insulation Grade: B/F |
| Continuous Working Duty: S1 |
| Specification: IEC 60034-30: 2008 |
| HS Code: 8501 |
Performance Chart:

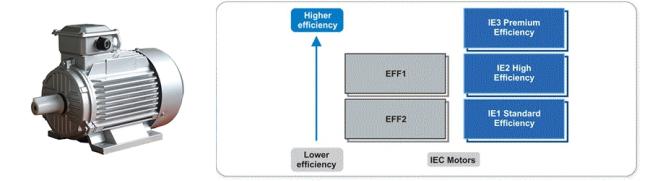

Performance comparison chart:
| ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM | ||||
| Power(kw) | eff2 (nominal) | eff1(nominal) | IE2 (nominal) | IE3 (nominal) |
| 0.75 | - | - | 77.4 | 80.7 |
| 1.1 | 76.2 | 82.8 | 79.6 | 82.7 |
| 1.5 | 78.5 | 84.1 | 81.3 | 84.2 |
| 2.2 | 81 | 85.6 | 83.2 | 85.9 |
| 3.0 | 82.6 | 86.7 | 84.6 | 97.1 |
| 4.0 | 84.2 | 87.6 | 85.8 | 88.1 |
| 5.5 | 85.7 | 88.6 | 87.0 | 89.2 |
| 7.5 | 87 | 89.5 | 88.1 | 90.1 |
| 11 | 88.4 | 90.5 | 89.4 | 91.2 |
| 15 | 89.4 | 91.3 | 90.3 | 91.9 |
| 18.5 | 90 | 91.8 | 90.9 | 92.4 |
| 22 | 90.5 | 92.2 | 91.3 | 92.7 |
| 30 | 91.4 | 92.9 | 92.0 | 93.3 |
| 37 | 92 | 93.3 | 92.5 | 93.7 |
| 45 | 92.5 | 93.7 | 92.9 | 94.0 |
| 55 | 93 | 94 | 93.2 | 94.3 |
| 75 | 93.6 | 94.6 | 93.8 | 94.7 |
| 90 | 93.9 | 95 | 94.1 | 95.0 |
| 110 | 94.3 | 95.2 | ||
| 132 | 94.6 | 95.4 | ||
| 160 | 94.8 | 95.8 | ||
| 200...375 | 95 | 95.8 | ||
IE3 Motor Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
IE3 Motor Our Service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
