240v 50hz Single Phase Induction Motor 0.75hp 0.55KW For Pool Water Pump
0.75hp Single Phase Induction Motor For Pool Water Pump 240v 50hz
Single Phase Induction Motor

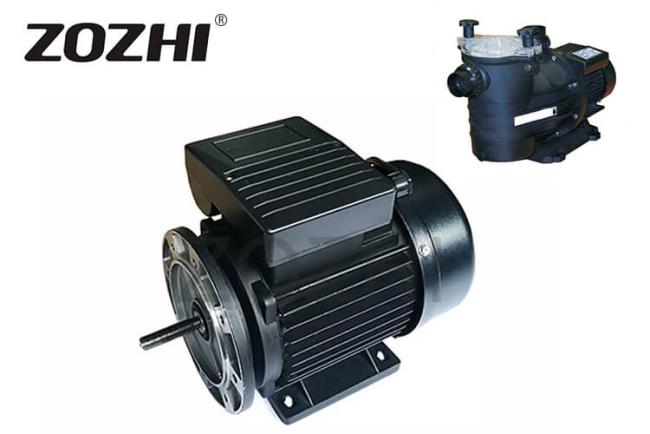

MYT711-2 single-phase induction motor designed for swimming pool pump. the pool pump moves the water from the Swimming Pool to the Filtration plant and back to the Swimming Pool Pump
Specifications
- Motor model: MYT711-2
- Power:0.75HP/0.55KW
- Voltage(V) : 240V /50HZ ( 220V available)
- Protection:IP44/IP54/IP55
- Insulation Class: B/F/H
- Ambient temperature:-15℃≦0≦40℃
| Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | Tstart/Tn | Tmax/Tn | |||||||||||||
| HP | KW | |||||||||||||||||||||
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 | ||||||||||||
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||||||||||||||
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||||||||||||||
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 | ||||||||||||||
Application
Guarantee
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
