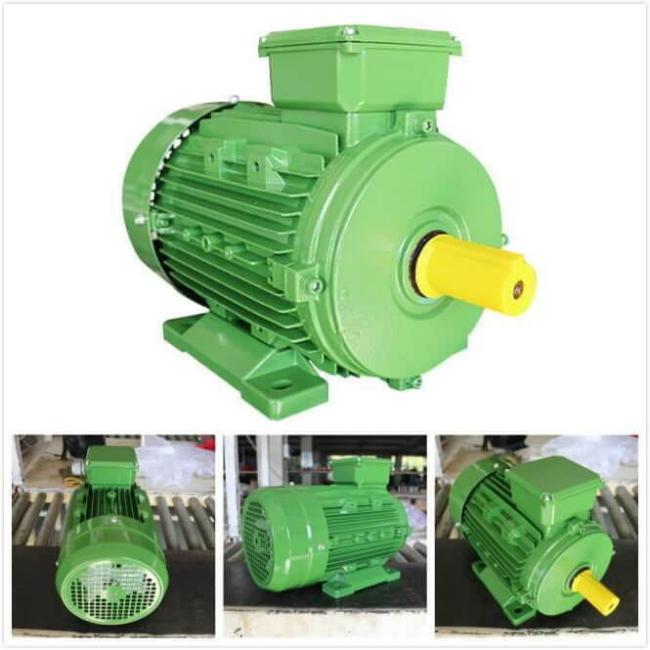

Induction IE2 Motor Low Noise 4 Pole 0.75kw 1400rpm Ms802-4 Preminum Efficiency
premium Efficiency induction motors Low noise 4pole 0.75kw 1400rpm Ms802-4
IE2 High-Efficiency Motor
premium efficiency three-phase asynchronous motors is a fully closed, self-fan cold mouse cage three-phase asynchronous motor manufactured with new materials, have high efficiency, high starting torque, low noise, more reasonable structure, and cooling conditions mature.
Operating conditions:
Ambient temperature: -15°C~40°C
Altitude: Altitude should be higher than 1000 meters above sea level.
Rated voltage: 380V,400V,415V,440V. Rated frequency: 50Hz,60Hz.
Connection: Y Star-connection for 3kw or less whereas and delta-connection.
Duty/Rating: Continuous (S1).
Insulation class: F, the temperature rise of the stator winding is examined at 80K
(by resistance method).
Protection class: IP55.
Cooling method: IC411.
PERFORMANCE CHART:
Performance comparison chart:
| ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM | ||||
| Power(kw) | eff2 (nominal) | eff1 (nominal) | IE2 (nominal) | IE3 (nominal) |
| 0.75 | - | - | 79.6 | 82.5 |
| 1.1 | 76.2 | 83.8 | 81.4 | 84.1 |
| 1.5 | 78.5 | 85.0 | 82.8 | 85.3 |
| 2.2 | 81 | 86.4 | 84.3 | 86.7 |
| 3.0 | 82.6 | 87.4 | 85.5 | 87.7 |
| 4.0 | 84.2 | 88.3 | 86.6 | 88.6 |
| 5.5 | 85.7 | 89.2 | 87.7 | 89.6 |
| 7.5 | 87 | 90.1 | 88.7 | 90.4 |
| 11 | 88.4 | 91.0 | 89.8 | 91.4 |
| 15 | 89.4 | 91.8 | 90.6 | 92.1 |
| 18.5 | 90 | 92.2 | 91.2 | 92.6 |
| 22 | 90.5 | 82.6 | 91.6 | 93.0 |
| 30 | 91.4 | 93.2 | 92.3 | 93.8 |
| 37 | 92 | 93.6 | 92.7 | 93.9 |
| 45 | 92.5 | 93.9 | 93.1 | 94.2 |
| 55 | 93 | 94.2 | 93.5 | 94.6 |
| 75 | 93.6 | 94.7 | 94.0 | 95.0 |
| 90 | 93.9 | 95.0 | 94.2 | 95.2 |
| 110 | 94.5 | 95.4 | ||
| 132 | 94.7 | 95.6 | ||
| 160 | 94.9 | 95.8 | ||
| 200...375 | 95.1 | 96.0 | ||
 |
 |
 |
 |
 |
 |
 |
 |
 |
IE2 Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
IE2 Motor OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
