3000rpm Hollow Shaft Motor Electric Aluminum Material 2 Pole IP54 Protection Class
Hollow Shaft Motor

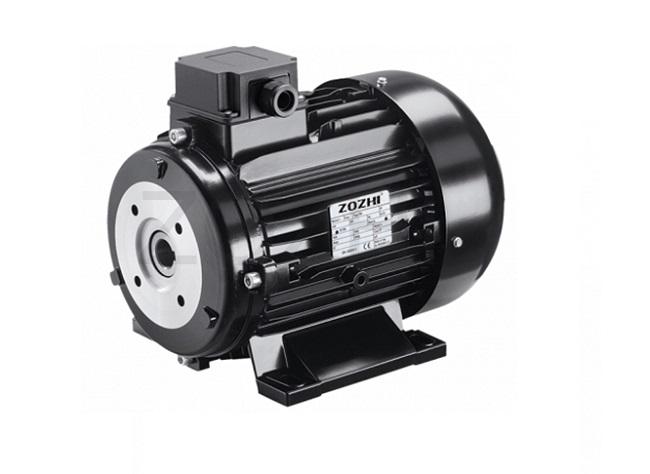

HS 712-2 3000rpm Hollow Shaft Electric Motor With Aluminum
![]()
Description
The hollow shaft electric motor is a high-quality motor with an empty metal tube design that reduces the overall size of the hollow shaft and maintains all the technical and maintenance advantages of a standard engine. Greatly optimized mechanical design, saving design space and production cost, widely used in various automated mechanical equipment, such as pressure pumps, supercharger equipment, etc.
Model: HS712-2
Frame Size:71
Power:0.75HP/0.55KW
Application
Hollow shaft electric motors can use for in a wide range of automated machineries, such as standard water treatment equipment, packaging machinery, balers, gearbox, printing machinery, etc.
Operating conditions:
1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request
Production line
Hollow Shaft Motor
Production data
| Single-Phase 2 Poles 3000Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
| KW | H.P.PP.F | . F.U.F. | U.F. | V | A | |||
| 711-2 | 0.37 | 0.5 | 2790 | 0.95 | 62 | 12.5 | 230 | 2.7 |
| 712-2 | 0.55 | 0.75 | 2790 | 0.98 | 61 | 16 | 230 | 4.0 |
| 90L1-2 | 1.8 | 2.5 | 2850 | 0.95 | 65 | 50 | 230 | 12.7 |
| 90L2-2 | 2.2 | 3 | 2840 | 0.99 | 72 | 60 | 400 | 13.4 |
| 100L2 | 2.2 | 3 | 2850 | 0.96 | 74 | 85 | 400 | 15.3 |
| Single-Phase 4 Poles 1500Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPEREH.P. | |
| WP.F | P. | U.F.F. | U.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1360 | 0.91 | 57 | 10 | 230 | 2.1 |
| 712-4 | 0.37 | 0.5 | 1380 | 0.94 | 65 | 16 | 230 | 2.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.98 | 70 | 45 | 230 | 9.5 |
| 100L1-4 | 1.85 | 2.5 | 1390 | 0.97 | 68 | 55 | 230 | 12.2 |
| 100L2-4 | 2.2 | 3 | 1350 | 0.99 | 74 | 70 | 230 | 13.1 |
| 100L3-4 | 2.6 | 3.5 | 1350 | 0.96 | 74 | 80 | 230 | 17.5 |
| 112M1-4 | 3 | 4 | 1400 | 0.98 | 74 | 80 | 230 | 18.1 |
| 112M2-4 | 3.7 | 5 | 1410 | 0.96 | 76 | 100 | 230 | 22 |
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
F.A.Q.:
1. Q: What's the M.O.Q.?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do O.E.M. for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% agaiB.L.t the B.L. copL.C.or 100% L.C. at sight.
