Single Phase Hollow Shaft Electric Motor HS711-4 For High Pressure Water Pump
HS711-4 Single Phase Hollow Shaft Electric Manufactures in FUAN For High-Pressure Water Pump

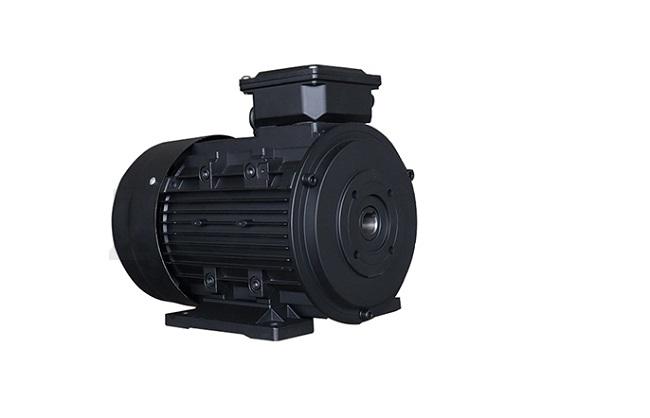

Hollow Shaft Motor
![]()
Description
It is a hollow shaft motor consisting of a stator and a rotor end cap. It is a new one with several numbers. It dramatically optimizes the mechanical design, saves design space and production cost, and can be widely used in various automated machinery. For example, equipment suppliers can be used for pumps, ventilation equipment, supercharger equipment, small hydro-generators, etc.
Model: HS711-4
Frame Size:71
Power:0.35HP/0.25KW
Application

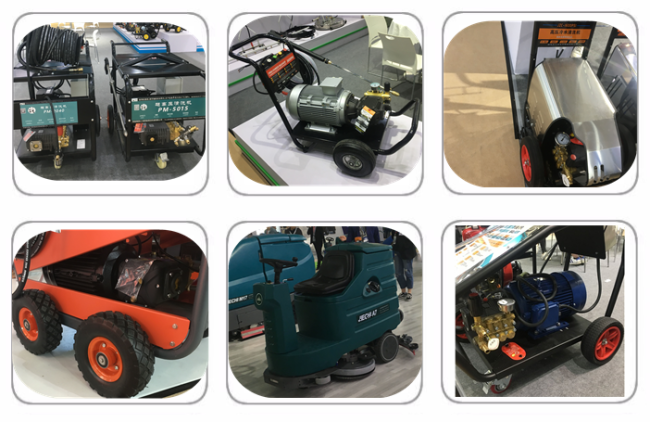

H.S. series hollow shaft electric motor has a wide range of using, such as with high-pressure pump for cleaners machine, washing machines, and so on
Operating conditions:
1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request
Production line
Hollow Shaft Motor
Production data
| Single-Phase 2 Poles 3000Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
| KW | H.P. | P.F. | U.F. | V | A | |||
| 711-2 | 0.37 | 0.5 | 2790 | 0.95 | 62 | 12.5 | 230 | 2.7 |
| 712-2 | 0.55 | 0.75 | 2790 | 0.98 | 61 | 16 | 230 | 4.0 |
| 90L1-2 | 1.8 | 2.5 | 2850 | 0.95 | 65 | 50 | 230 | 12.7 |
| 90L2-2 | 2.2 | 3 | 2840 | 0.99 | 72 | 60 | 400 | 13.4 |
| 100L2 | 2.2 | 3 | 2850 | 0.96 | 74 | 85 | 400 | 15.3 |
| Single-Phase 4 Poles 1500Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
| KW | H.P. | P.F. | U.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1360 | 0.91 | 57 | 10 | 230 | 2.1 |
| 712-4 | 0.37 | 0.5 | 1380 | 0.94 | 65 | 16 | 230 | 2.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.98 | 70 | 45 | 230 | 9.5 |
| 100L1-4 | 1.85 | 2.5 | 1390 | 0.97 | 68 | 55 | 230 | 12.2 |
| 100L2-4 | 2.2 | 3 | 1350 | 0.99 | 74 | 70 | 230 | 13.1 |
| 100L3-4 | 2.6 | 3.5 | 1350 | 0.96 | 74 | 80 | 230 | 17.5 |
| 112M1-4 | 3 | 4 | 1400 | 0.98 | 74 | 80 | 230 | 18.1 |
| 112M2-4 | 3.7 | 5 | 1410 | 0.96 | 76 | 100 | 230 | 22 |
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
