Hollow Shaft Three Phase Induction Motor 1450Rpm 0.55KW 0.75HP HS713-4 ISO Approval
0.55KW 0.75HP HS713-4 Hollow Shaft Electric Motor 1450Rpm For Cleaning Machine From ZOZHI
Hollow Shaft Motor
Description
- 0.55KW, 0.75 Hp, 1450 RPM, Three Phase, 400v, 50Hz, Hollow Shaft Electric Motor
- 24mm hollow shaft,
- 71Frame:
- IEC standard 713-4 Mounting B3,
- For cleaning machine
- 4Pole
- Die-cast aluminum housing
- Rated to IP54
Application

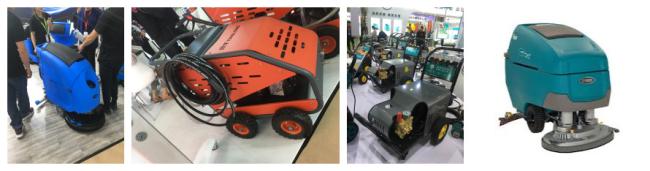

It is widely used in a wide range of automated machinery and equipment. For example, it is ideal for pressure washers and washing equipment.
Operating conditions:
1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 380V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request
Production line
Production data
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
| 712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
| 713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
| 90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
| 90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
| 100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
| 100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
| 100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
| 100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
| 112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
| 112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
| 112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
| 112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
| 132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
| 132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
| 132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
| 132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
| 132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
| 160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
| 160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
