MYT802-2 2HP 2800RPM Pool Pump Motor 220V 50HZ
Fan Cooling Single Phase Induction Motor MYT802-2 2HP 2800RPM 220V 50HZ For Swimming Pool
Pool Pump Motor Description
MYT series high-efficiency single-phase capacitor running asynchronous aluminum motor is a one-way motor for the water pump. It consists of a base equipped with a stator. The floor is fitted with a rotor. Both ends of the base are equipped with end caps and motors. The outer casing is all die-cast aluminum alloy. High efficiency, good performance, long service life, energy-saving, ample starting torque, low noise, low vibration, large starting torque, high reliability, compact structure, and easy operation.
- Motor model: MYT802-2
- Power: 2HP/1.5KW
- Voltage(V) : 220V /50HZ
- Protection: IP54
- Insulation Class: B
- Ambient temperature: -15℃≦0≦40℃
Production data
| Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | T start/Tn | Tmax/Tn | |
| HP | KW | |||||||||
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 |
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |

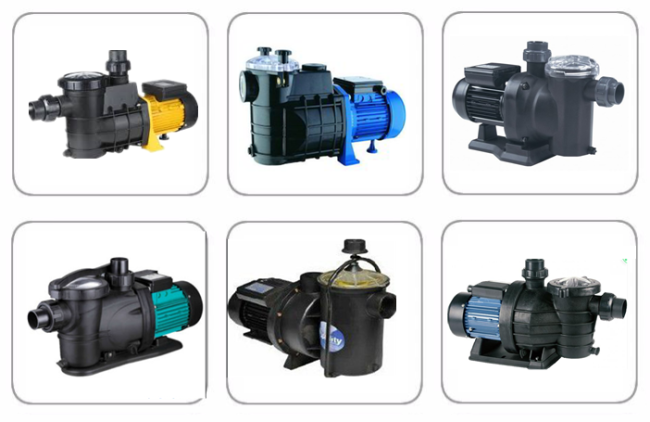

Pool Pump Motor Application
Single-phase electric water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and increased insulation grade. It is the best choice for swimming pool pumps.

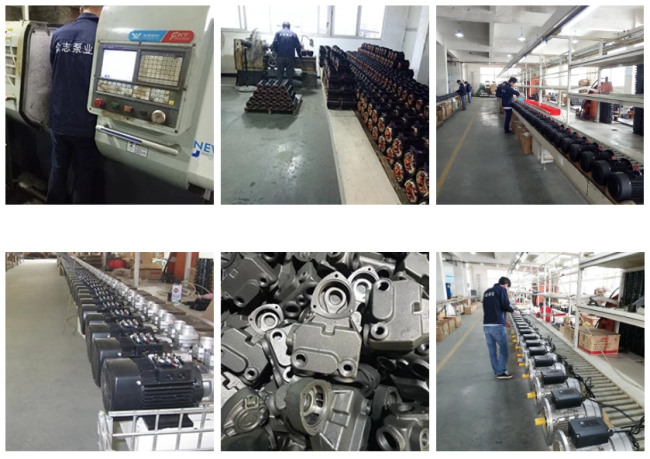

Production line
Pool Pump Motor General data
| Frame size | 71 |
| Housing material | Aluminum |
| Install model | According to the standard |
| Type of feet | Removable feet |
| Net weight | 5.2 kg |
| Insulation class | FH(Standard)(Optional) |
| Protection degree | IP 55IP 56(Standard)(Optional) |
| Thermal protection | WithoutCustomizable(Standard)(Optional) |
| Rotation direction | ClockwiseCounter clockwise(Standard)(Optional) |
| Service duty | S1 |
| Vibration level | A |
| Balance | Half-key balanced |
| Cable glands | 1 - M20 × 1.5 |
| Cooling | IC 411 |
| Painting color | RAL 7024Customizable(Standard)(Optional) |
| Regulations | IEC / DIN / ISO / VDE / EN |
| Standard | IEC 60034 |
| Environmental conditions | |
| Ambient temperature | From -20°C to +40°C |
| Maximum altitude | 1000 m above sea level |
Pool Pump Motor Guarantee
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
INFORMATION
Motor bearing heating analysis
(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.
(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.
(3) improper lubrication system leads to bearing heating due to poor lubrication
(4) bearing heating caused by motor temperature rise or operating environment temperature.
