Aluminium Housing Single Phase Electric Motor Hollow Shaft 4 Pole 711-4 0.25Kw
Single Phase Electric Motor Aluminium Housing High-Pressure Pump Motor Hollow Shaft Motor 711-4 0.25Kw
Hollow Shaft Motor
Description
Hollow shaft motors can be used in a wide range of automated machineries, such as standard water treatment equipment, packaging machinery, balers, printing machinery, small hydroelectric generators, etc.
Application

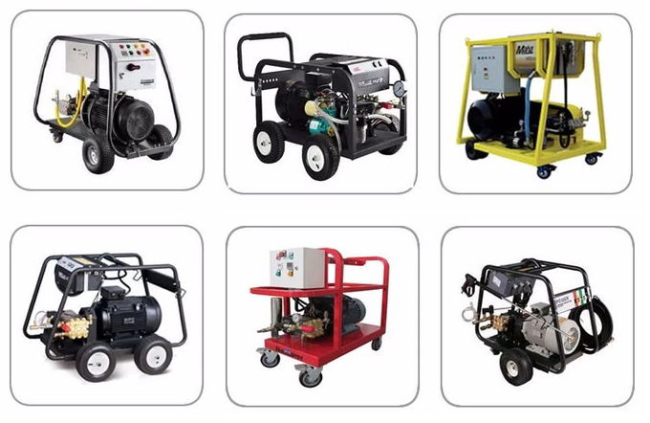

for pressure washers pumps
for direct mounting to the pump, in just a few minutes
no need to disassemble the motor front side
special executions on request
Operating conditions:
1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request
Production line
Production data
| Three-Phase 2 Poles 3000Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | HPH.P. | .P.F | V | A | |||
| 711-2 | 0.37 | 0.5 | 2780 | 0.82 | 82 | 400 | 0.8 |
| 712-2 | 0.55 | 0.75 | 2790 | 0.83 | 81 | 400 | 1.2 |
| 90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| 90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| 90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| 100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| 100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| 100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| 112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| 132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| 132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| 132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| 132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| 160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| 160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 |
34 |
| Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | HPH.P. | .P.F | V | A | |||
| 711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
| 712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
| 713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
| 90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
| 90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
| 100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
| 100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
| 100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
| 100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
| 112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
| 112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
| 112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
| 112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
| 132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
| 132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
| 132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
| 132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
| 132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
| 160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
| 160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
| Three-Phase 6 Poles 1000Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | HPH.P. | .P.F | V | A | |||
| 71-6 | 0.25 | 0.35 | 880 | 0.73 | 45 | 400 | 1.1 |
| 90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
| 100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
| 112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
| 112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
| 132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
| 132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
| 132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
| 132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
| 160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
| 160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's correct artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: WhWhat'she MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: WhWhat'she the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BLB.L.opy or 100% LCL.C.t sight.
