Fully Enclosed Fan Cooled Squirrel Cage Electric Motor 2 Poles Low Noise 0.75-315KW
Y Series Three-Phase Induction Motor, 2 poles low noise electric motor 0.75-315KW 2Pole
3 Phase Induction Motor
PRODUCT DESCRIPTIONS
Y series 2 pole electric motor is a fully enclosed fan cooled, three-phase squirrel cage asynchronous motor.
Y series motor has the advantages of safety and reliability, beautiful appearance, convenient maintenance, low noise, small vibration, and simple structure. High efficiency, large starting torque, and low noise.
APPLICATIONS

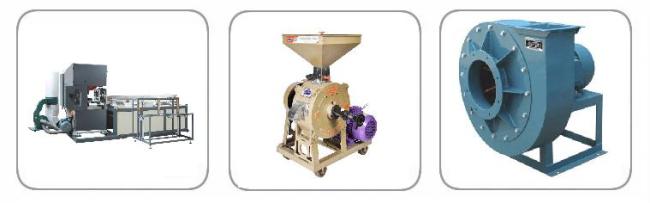

Y series motors are widely used in applications with no flammable, explosive, or corrosive gas. Therefore, there are no special requirements, such as machine tools, pumps, fans, transportation machinery, agricultural machinery, food machinery.
THREE-PHASE INDUCTION MOTOR FEATURES
1. Consistent performance
2. Low maintenance
3. Suitable for mounting in any position
4. Easy to operate
3 Phase Induction Motor OPERATING LIMITS
1. Priming voltage: 380V or any voltage between 220-760V
2. Sea level: not exceed 1000m. If over, the power will be down
3. Environment temperature: -15℃ ≦ 0 ≦ 40℃
4. Protection: IP44 / IP54 / IP55
5. Insulation Class: B / F / H
PERFORMANCE CHART
| Model | Prime Power | (A) | Speed | Eff. | Power Factor | Eff. | Power Factor | Tstart/Tn | Ist/In | Tmax/Tn | |
| kW | HP | (r/min) | (%) | (%) | |||||||
| 380V 50Hz SynchronousSpeed 3000r/min(2 Poles) | |||||||||||
| Y-801-2 | 0.75 | 1 | 1.81 | 2830 | 75 | 0.84 | 73.8 | 0.79 | 2.2 | 6.5 | 2.3 |
| Y-802-2 | 1.1 | 1.5 | 2.52 | 2830 | 77 | 0.86 | 76.5 | 0.81 | 2.2 | 7 | 2.3 |
| Y-90S-2 | 1.5 | 2 | 3.44 | 2840 | 78 | 0.85 | 77.5 | 0.8 | 2.2 | 7 | 2.3 |
| Y-90L-2 | 2.2 | 3 | 4.83 | 2840 | 80.5 | 0.86 | 79.7 | 0.82 | 2.2 | 7 | 2.3 |
| Y-100L-2 | 3 | 4 | 6.39 | 2870 | 82 | 0.87 | 81.3 | 0.83 | 2.2 | 7 | 2.3 |
| Y-112M-2 | 4 | 5.5 | 8.17 | 2890 | 85.5 | 0.87 | 84.8 | 0.83 | 2.2 | 7 | 2.3 |
| Y-132S1-2 | 5.5 | 7.5 | 11.1 | 2900 | 85.5 | 0.88 | 84.9 | 0.86 | 2 | 7 | 2.3 |
| Y-132S2-2 | 7.5 | 10 | 15 | 2900 | 86.2 | 0.88 | 85.5 | 0.86 | 2 | 7 | 2.3 |
| Y-160M1-2 | 11 | 15 | 21.8 | 2930 | 87.2 | 0.88 | 86.5 | 0.86 | 2 | 7 | 2.3 |
| Y-160M2-2 | 15 | 20 | 29.4 | 2930 | 88.2 | 0.88 | 87.6 | 0.85 | 2 | 7 | 2.3 |
| Y-160L-2 | 18.5 | 25 | 35.5 | 2930 | 89 | 0.89 | 88.5 | 0.86 | 2 | 7 | 2.2 |
| Y-180M-2 | 22 | 30 | 42.2 | 2940 | 89 | 0.89 | 88.1 | 0.87 | 2 | 7 | 2.2 |
| Y-200L1-2 | 30 | 40 | 56.9 | 2950 | 90 | 0.89 | 88.7 | 0.86 | 2 | 7 | 2.2 |
| Y-200L2-2 | 37 | 50 | 69.8 | 2950 | 90.5 | 0.89 | 89.7 | 0.86 | 2 | 7 | 2.2 |
| Y-225M-2 | 45 | 60 | 83.9 | 2970 | 91.7 | 0.89 | 90.7 | 0.87 | 2 | 7 | 2.2 |
| Y-250M-2 | 55 | 75 | 103 | 2970 | 91.5 | 0.89 | 90.6 | 0.86 | 2 | 7 | 2.2 |
| Y-280S-2 | 75 | 100 | 139 | 2970 | 92 | 0.89 | 91 | 0.86 | 2 | 7 | 2.2 |
| Y-280M-2 | 90 | 125 | 166 | 2970 | 92.5 | 0.89 | 91.4 | 0.86 | 2 | 7 | 2.2 |
| Y-315S-2 | 110 | 150 | 203 | 2980 | 92.5 | 0.89 | 91.4 | 0.86 | 1.8 | 6.8 | 2.2 |
| Y-315M-2 | 132 | 180 | 242 | 2980 | 93 | 0.89 | 91.8 | 0.87 | 1.8 | 6.8 | 2.2 |
| Y-315L1-2 | 160 | 220 | 292 | 2980 | 93.5 | 0.89 | 91.9 | 0.87 | 1.8 | 6.8 | 2.2 |
| Y-315L2-2 | 200 | 270 | 365 | 2980 | 93.5 | 0.89 | 92.3 | 0.87 | 1.8 | 6.8 | 2.2 |
| Y-355M-2 | 250 | 340 | 444 | 2980 | 94.5 | 0.9 | 93.3 | 0.88 | 1.6 | 7 | 2.2 |
| Y-355L-2 | 315 | 430 | 556 | 2950 | 95 | 0.9 | 93.9 | 0.88 | 1.6 | 7.1 | 2.2 |
3 Phase Induction Motor GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE
1. Directly factory sale.
2. Quick response to 2-8hours, response rates over 92%.
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
