Energy Saving Hollow Shaft Electric Motor 4 Pole 711-4 0.25Kw For Car Washer
High-quality Energy-Saving Hollow Shaft Electric Motor 711-4 0.25Kw For Car Washer
Hollow Shaft Motor
Hollow Shaft Electric Motor Description
The hollow shaft motor is an aluminum housing enclosed fan-cooled squirrel-cage A.C. asynchronous motor. It consists of a stator, rotor, and end caps. It adopts a hollow metal tube design, which greatly optimizes the mechanical design and maintains all the technologies of standard motors. Maintenance has something to save design space and production costs. 100% copper wiring, high-quality bearing, ample starting torque, high reliability, compact structure, easy operation, low pitch, low vibration, safe and reliable operation, high efficiency, and energy-saving. Ideal for cleaning equipment with increased pump combination
Advantage:
1. Using high-quality materials, the output power is sufficient, the working current is small, the temperature rise is effectively reduced, the heat dissipation is good, and the energy is high.
2. the use of high-quality bearings, rigorous assembly process to achieve low noise operation.
3. Tailored for professional cleaning equipment, the shaft extension is subjected to high-frequency quenching treatment, which significantly improves the mechanical strength and seamlessly connects with the cleaning equipment to realize worry-free operation.
Hollow Shaft Electric Motor Application

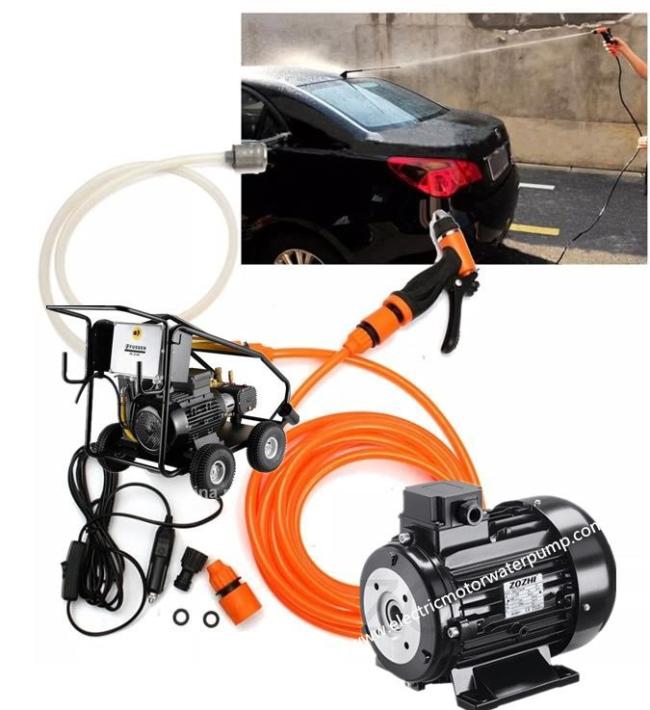

Hollow shaft induction motors have a wide range of applications in use and are connected to booster pumps. In addition, they are the power of automotive cleaning tools and are ideal for cleaning equipment.
Production line
Production data
| Single-Phase 2 Poles 3000Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
| KW | H.P. | P.F. | U.F. | V | A | |||
| 711-2 | 0.37 | 0.5 | 2790 | 0.95 | 62 | 12.5 | 230 | 2.7 |
| 712-2 | 0.55 | 0.75 | 2790 | 0.98 | 61 | 16 | 230 | 4.0 |
| 90L1-2 | 1.8 | 2.5 | 2850 | 0.95 | 65 | 50 | 230 | 12.7 |
| 90L2-2 | 2.2 | 3 | 2840 | 0.99 | 72 | 60 | 400 | 13.4 |
| 100L2 | 2.2 | 3 | 2850 | 0.96 | 74 | 85 | 400 | 15.3 |
| Single-Phase 4 Poles 1500Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
| KW | H.P. | P.F. | U.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1360 | 0.91 | 57 | 10 | 230 | 2.1 |
| 712-4 | 0.37 | 0.5 | 1380 | 0.94 | 65 | 16 | 230 | 2.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.98 | 70 | 45 | 230 | 9.5 |
| 100L1-4 | 1.85 | 2.5 | 1390 | 0.97 | 68 | 55 | 230 | 12.2 |
| 100L2-4 | 2.2 | 3 | 1350 | 0.99 | 74 | 70 | 230 | 13.1 |
| 100L3-4 | 2.6 | 3.5 | 1350 | 0.96 | 74 | 80 | 230 | 17.5 |
| 112M1-4 | 3 | 4 | 1400 | 0.98 | 74 | 80 | 230 | 18.1 |
| 112M2-4 | 3.7 | 5 | 1410 | 0.96 | 76 | 100 | 230 | 22 |
| Three-Phase 2 Poles 3000Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 711-2 | 0.37 | 0.5 | 2780 | 0.82 | 82 | 400 | 0.8 |
| 712-2 | 0.55 | 0.75 | 2790 | 0.83 | 81 | 400 | 1.2 |
| 90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| 90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| 90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| 100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| 100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| 100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| 112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| 132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| 132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| 132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| 132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| 160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| 160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 |
34 |
| Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
| 712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
| 713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
| 90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
| 90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
| 100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
| 100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
| 100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
| 100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
| 112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
| 112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
| 112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
| 112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
| 132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
| 132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
| 132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
| 132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
| 132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
| 160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
| 160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
| Three-Phase 6 Poles 1000Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 71-6 | 0.25 | 0.35 | 880 | 0.73 | 45 | 400 | 1.1 |
| 90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
| 100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
| 112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
| 112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
| 132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
| 132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
| 132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
| 132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
| 160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
| 160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Hollow Shaft Motor
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
