Mechanical Seal Easy Spare Parts Single Face CN 109 2.4Mpa Pressure For Water Pump
Mechanical Seal Easy Spare Parts Single Face CN 109 2.4Mpa Pressure For Water Pump
Mechanical Seal
Design Features
Internally mounted, single face, multi-spring, unbalanced structure and driven by brace ear and claw transmission, any rotation direction, compact construction, it can be mounted conveniently.
Conform to the standard of API610
PTEE or flexible graphite wedge is used as a secondary seal. for use in corrosive fluids and high-temperature applications
With "A" seat, "P" and "PP" types stationary seats are available
The installation dimensions conform to the standard of GB6556. ISO3069 and Din24960, which have a wide application range.
Materials(to DIN24960)
Rotary Ring: B U1 U2 Q1 Q2
Stationary Ring: U1 U2 Q2 V1
Auxiliary Seal: T1 G
Spring and other parts: G M4
Operating limits
| Temperature: | -100~500℃ |
| Pressure: |
0~2.4 Mpa |
| Speeds: |
≤25m/sec |
Applications
Used in all types of rotating equipment, pumps, mixers, agitators, and compressors, wedge construction of the secondary sealing element virtually eliminates leakage
Medium
Oil, water, salt, noncrystalline agent, organic solvents, and other weak corrosive fluid

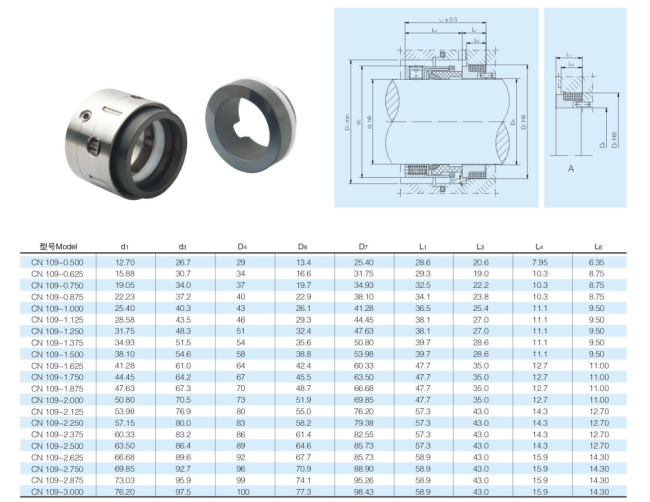

Size Information
More Products
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.
