3 Phase Hollow Shaft Stepper Motor 5.5KW/7.5HP For Electric High Pressure Cleaner

5.5KW/7.5HP Hollow Shaft Electric Motors For 3 Phase Electric High-Pressure Cleaner

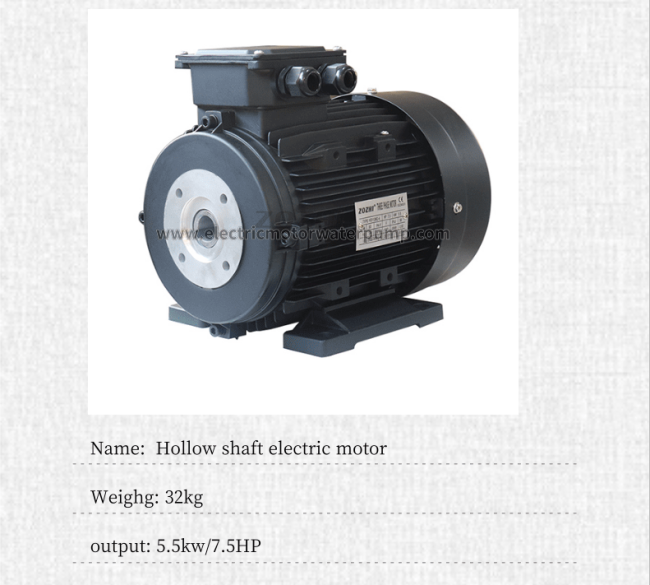

Hollow Shaft Motor

Operating conditions:

Model: HS112M2-4

Output:5.5KW/7.5HP

Speed: 1450rp,

Rated Voltage: 230/400V

Phase: Three-Phase

Housing: Aluminum

Hollow Shaft electric motor directed-mounting to the pump without pump sleeve coupling, reducing installation space

Smooth operation, low noise, and low heat

Exquisite technology, compact structure, beautiful appearance, design

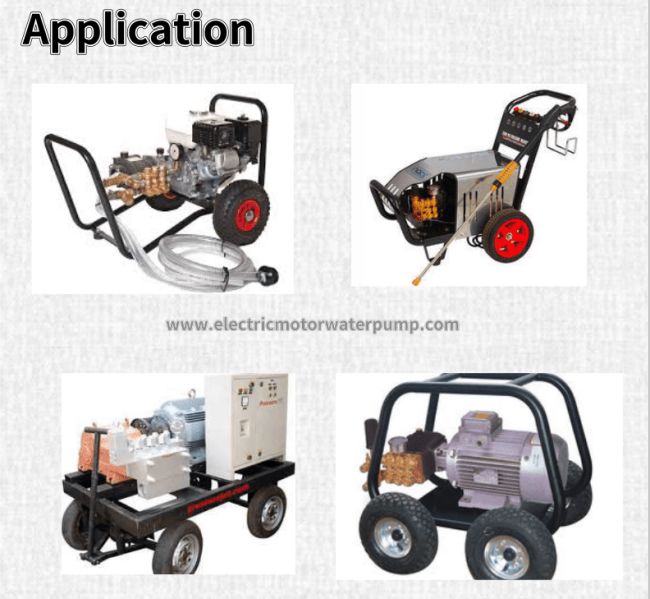

5.5kw 7.5HP three-phase hollow-shaft motor with 200bar pump is a perfect choice for fitting on compact professional high-pressure washers as well as washing systems

Data

What are the reasons and treatment methods for the insufficient pressure of water pressure of the high-pressure cleaner:

1. The high-pressure nozzle of the high-pressure cleaning machine is severely worn. Excessive wear of the high-pressure nozzle will affect the water pressure of the equipment. Therefore, the new nozzle should be replaced in time.

2. The Insufficient inlet water flow of the connected equipment leads to insufficient water flow, resulting in inadequate output pressure. Therefore, supply enough water flow in time to solve the problem of lower water pressure.

3. The high-pressure washer cleans the water inlet filter with air. After exhausting the air in the water inlet filter, ensure that the standard outlet pressure is output.

4. After the aging of the overflow valve of the high-pressure cleaner, the overflow of the water flow is large, and the pressure becomes low. Therefore, when it is aging, it is necessary to replace the parts in time.

5. The high and low-pressure water seal of the high-pressure washer and the check valve of the inlet and outlet water have caused the leakage of the working pressure, which should be replaced in time.

6. High-pressure pipes and filter devices are kinked, bent, or damaged, resulting in poor water flow and insufficient pressure, and should be repaired in time.

7. The internal of the high-pressure pump is faulty, the wearing parts are worn, and the water flow is reduced; the internal pipeline of the equipment is blocked, and the water flow is too small, resulting in too low working pressure.
