High Pressure Pumps Three Phase Electric Motor 1400rpm Speed With Hollow Shafts
Three Phase Electric Motor For High-Pressure Pumps With Hollow Shafts
Hollow Shaft Motor
With the solution "hollow shaft," dimensional spaces of the motor-pump group are reduced because the direct coupling allows the elimination of elastic coupling and pump flange required to fix the standard-shaft motors.
The direct coupling of the motor pump represents a simple, economical, and highly reliable solution because ZOZHI can guarantee mechanical machinings of extreme precision.
The accuracy of the coupling "motor-shaft / pump-shaft" allows the operation and the safe use of the group for long periods, without failures.
ZOZHI was among the pioneers in its industry for the construction of motors with hollow shafts. Working with world leaders in the pump industry, he has gained vast experience by developing product lines fitting all the pumps' models and brands.
Operating conditions:
| Output | 2.2kw/3HP | Model | HS100L2-4 |
| Duty | S1 | Speed | 1400RPM |
| Ambient temperature | -15℃≤θ≤60℃ | Rated voltage | 230V |
| Frequency | 50HZ | Protection class | IP55/54 |
| Phase | 1 | Pole | 4 |
| Insulation Class | F | Efficiency | IE3/IE2 |
Application

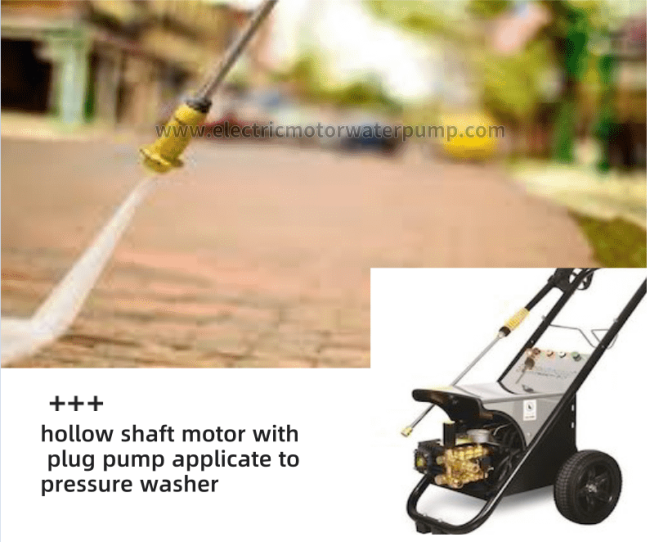

3HP 1400RPM hollow shaft motor can be direct-connected with 150bar plug pumps can operate at a maximum pressure of 150 bar and with water temperatures up to 65°C (150F). This model is a perfect choice for fitting on professional high-pressure washers.
Data
| Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
| 712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
| 713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
| 90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
| 90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
| 100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
| 100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
| 100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
| 100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
| 112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
| 112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
| 112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
| 112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
| 132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
| 132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
| 132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
| 132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
| 132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
| 160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
| 160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
