4HP Electric Ac Asynchronous Motors 220V 3KW Single Phase
Price:
USD piece
MOQ:
1 piece
Delivery Time:
30 work days
Brand:
ZOZHI
Product Description

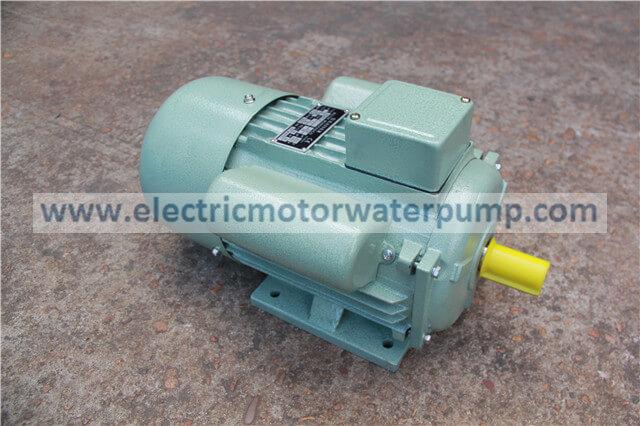

4HP Electric Ac Asynchronous Motors 220V 3KW
Electric Motor Water Pump Product Description
| High-Efficiency AC motor | ||
| Productor name | AC motor | Good after-sales service is the root of enterprise survival. Win-Win cooperation |
| Color | Customizable | |
| Material | CAST IRON | |
| Function | These motors also concentrate on the advantages of large starting torque, smooth turning, low-temperature rise, low noise, and great overload performance. | |
| Applicable | They are suitable for powering small types of drilling machines and water pumps, especially for family workshops where only a single-phase current supply is available. | |
| Type | Rated Power | Voltage(V) | Frequency(HZ) | Rated Current(A) | Rated Speed(r/min) | Efficiency(%) | Power Factor(CosΦ) | |
| KW | HP | |||||||
| YC80A-2 | 0.37 | 1/2 | 220 | 50 | 3.7 | 2880 | 62 | 0.73 |
| YC80B-2 | 0.55 | 3/4 | 220 | 50 | 5.3 | 2880 | 65 | 0.73 |
| YC80C-2 | 0.75 | 1.0 | 220 | 50 | 6.7 | 2880 | 68 | 0.75 |
| YC90S-2 | 1.1 | 1.5 | 220 | 50 | 9.1 | 2880 | 71 | 0.77 |
| YC90L-2 | 1.5 | 2.0 | 220 | 50 | 12.1 | 2880 | 72 | 0.78 |
| YC100L-2 | 2.2 | 3.0 | 220 | 50 | 17.1 | 2900 | 74 | 0.79 |
| YC112M1-2 | 3 | 4.0 | 220 | 50 | 21.4 | 2900 | 76 | 0.84 |
| YC112M2-2 | 3.7 | 5.0 | 220 | 50 | 24.8 | 1450 | 79 | 0.86 |
| YC80A-4 | 0.25 | 1/3 | 220 | 50 | 3.4 | 1450 | 56 | 0.6 |
| YC80B-4 | 0.37 | 1/2 | 220 | 50 | 4.5 | 1450 | 60 | 0.62 |
| YC80C-4 | 0.55 | 3/4 | 220 | 50 | 6 | 1450 | 64 | 0.65 |
| YC90S-4 | 0.75 | 1.0 | 220 | 50 | 7.7 | 1450 | 67 | 0.66 |
| YC90L-4 | 1.1 | 1.5 | 220 | 50 | 10.5 | 1450 | 70 | 0.68 |
| YC100L-4 | 1.5 | 2.0 | 220 | 50 | 13.5 | 1450 | 72 | 0.7 |
| YC112M-4 | 2.2 | 3.0 | 220 | 50 | 19.3 | 1450 | 72 | 0.72 |
| YC132SA-4 | 3 | 4.0 | 220 | 50 | 25.2 | 1450 | 74 | 0.73 |
| YC132SB-4 | 3.7 | 5.0 | 220 | 50 | 30 | 1450 | 75 | 0.74 |
| YC132M-4 | 5.5 | 7.5 | 220 | 50 | 32.5 | 1450 | 81 | 0.95 |
| Mounting And Overall Dimensions | |||||||||||||||||||||
| Frame size | Mounting Dimensions | Overall Dimensions | |||||||||||||||||||
| A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | AB | AC | AE | AD | HD | L | |
| YC80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 165 | 110 | 120 | 200 | 310 |
| YC90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 120 | 140 | 240 | 355 |
| YC90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 120 | 140 | 240 | 385 |
| YC100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 215 | 180 | 250 | 0 | 15 | 4 | 205 | 220 | 130 | 145 | 260 | 415 |
| YC112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 215 | 180 | 250 | 0 | 15 | 4 | 245 | 250 | 140 | 160 | 300 | 448 |
| YC132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 262 | 150 | 210 | 350 | 470 |
| YC132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 262 | 150 | 210 | 350 | 553 |
Electric Motor Water Pump Product Description
YC SERIES SINGLE-PHASE ELECTRIC MOTOR SPECIFICATION TABLE
| YC TECHNICAL DATA | |||
| Type | Power (kw) | Current (A) @220V | Speed (r/min) |
| 3000rpm, 2-pole,50hz | |||
| YC80A-2 | 0.37 | 3.5 | 2880 |
| YC80B-2 | 0.55 | 5.1 | 2880 |
| YC80C-2 | 0.75 | 6.4 | 2880 |
| YC90S-2 | 1.1 | 8.7 | 2880 |
| YC90L-2 | 1.5 | 11.6 | 2900 |
| YC100-2 | 2.2 | 16.4 | 2900 |
| 1500rpm, 4-pole,50hz | |||
| YC80A-4 | 0.25 | 3.3 | 1450 |
| YC80B-4 | 0.37 | 4.3 | 1450 |
| YC80C-4 | 0.55 | 5.7 | 1450 |
| YC90S-4 | 0.75 | 7.4 | 1450 |
| YC90L-4 | 1.1 | 10 | 1450 |
| YC100L-4 | 1.5 | 12.9 | 1450 |
| YC112M-4 | 2.2 | 18.5 | 1450 |
| YC132SA-4 | 3.0 | 24.1 | 1450 |
| YC132SB-4 | 3.7 | 28.7 | 1450 |
Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ
Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pumps and motors in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What are your terms of payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about the delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air, and By express delivery.
Q6 About sample?
Available.
