M12 M14 M16 200KGS Bell Shape Rubber Anti Vibration Mounts

Price Negotiable

Price: $2.2-$3.0

MOQ: 10pcs

Delivery Time: it is 2-5 days if in stock,7-15 days if not stock

Brand: ZOZHI

Product Description

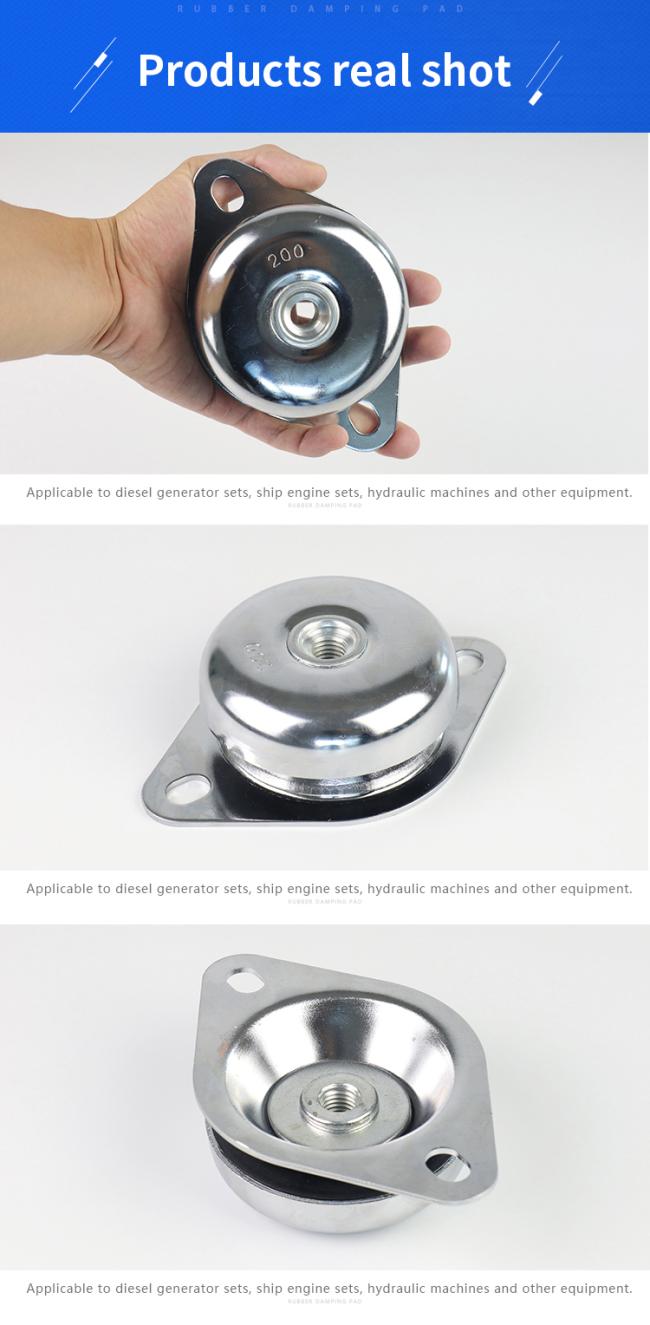

M12 100KGS Bell Shape Rubber Anti Vibration Mountings For Diesel Generator Set

Description:

Anti-Vibration mounts are designed to take vertical load applied in both shear and compression to give maximum isolation from vibrating machinery. Suitable for use in a wide variety of applications, including pumps, compressors, centrifugal fans, and blowers.

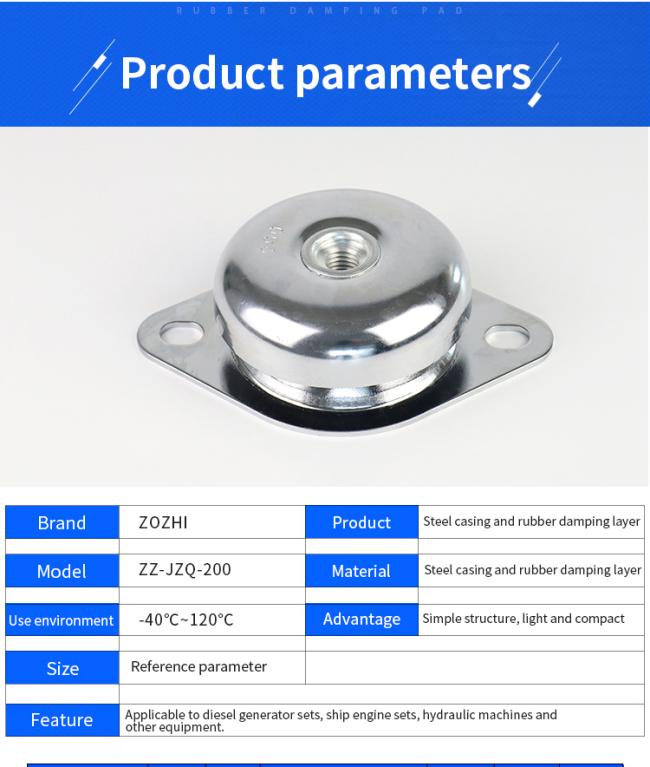

Product Name:	Anti-vibration mount
Specifications:	100~2000kg
Elastic component:	rubber
Metal parts:	white galvanized steel sheet UN-ISO 2081
Applicable environment:	-40 ° C ~ 120 ° C

Application:

A gasoline engine, motor, generator, compressor, engine, electric pump, air conditioning.

Characteristics:

Low dynamic coefficient, good anti-vibration effect, small size, low height, stable performance, easy and convenient installation, can be directly placed between the isolated unit and the ground, generally without anchor bolts, no concrete foundation, short construction period, Low investment is the ideal product for domestic power machinery to implement no basic anti-vibration

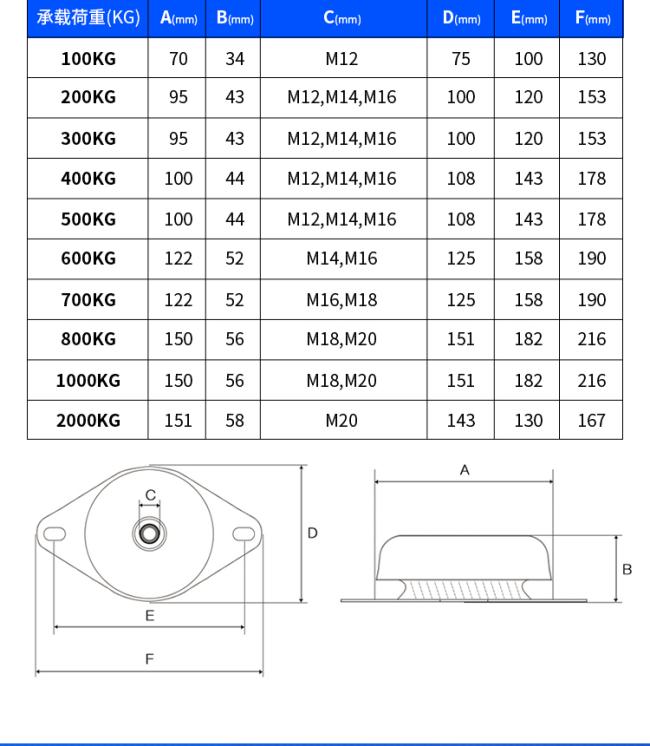

KG	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)
100KGS	70	34	M12	75	100	130
200KGS	95	43	M12,M14,M16	100	120	153
300KGS	100	43	M12,M14,M16	100	120	153
400KGS	100	44	M12,M14,M16	108	143	178
500KGS	100	44	M12,M14,M16	108	143	178
600KGS	122	52	M14, M16	125	158	190
800KGS	150	56	M18, M20	151	182	216
1000KGS	150	56	M18, M20	151	182	216
2000KGS	151	58	M20	143	130	167
