RECS-120P 115VAC Electronic Centrifugal Switch For Pump
Price:
$4-$15
MOQ:
10pcs
Delivery Time:
2 working days after received your payment
Brand:
ZOZHI
Product Description

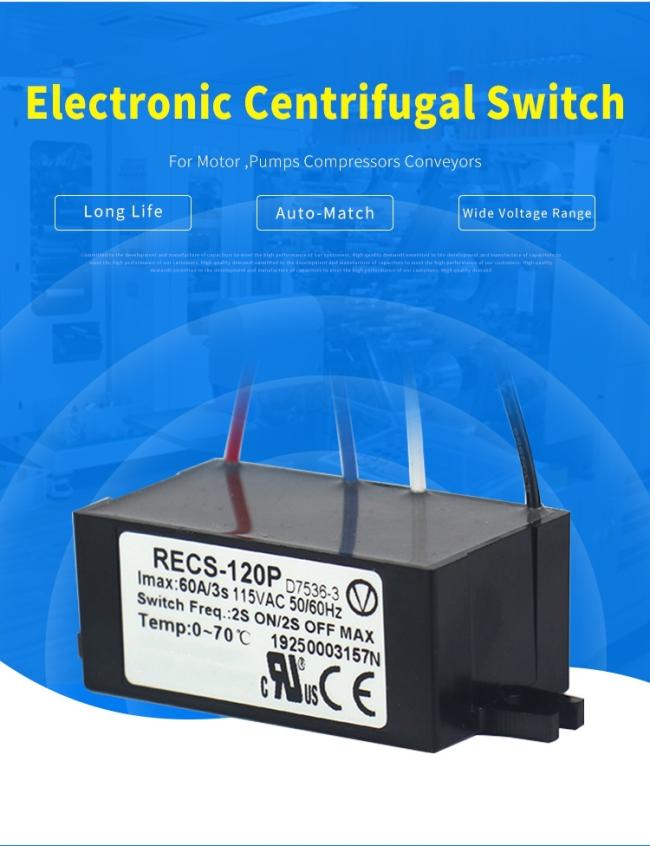

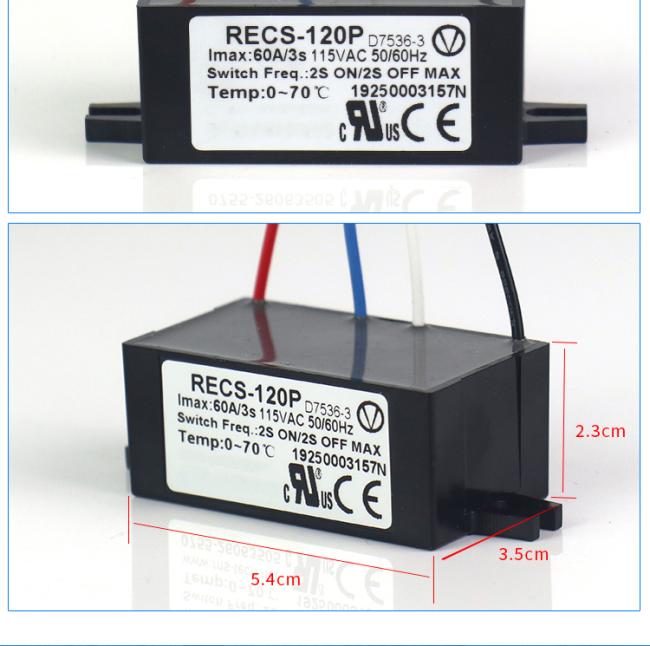

RECS-120P 60A/3S 115VAC Electronic Centrifugal Switch For Pump
Model number: RECS-120P
Suitable motor: 300-1000W
Imax: 60A/3S, 230VAC 50/60Hz
Switch Freq.: 2S ON/2S OFF MAX
Temp: 0-70 degree
Features
Small Package
Long Life(1M cycle)
General Switch,
Auto-Match different Motor
Wide Voltage Range 115V(90V-137V) 230V(198V-264V)
50Hz/60Hz applicable
Neither switching noise nor trembling of contacts
High compatibility with general-purpose motors as well as application-specific motors
Easy installation and maintenance, mounted on inside/outside standard motor frames
Sealed with epoxy resin or silicon rub, insensitive to dirt, dust, moisture, and vibration
Discharges starting capacitors
ROHS/CE/UL
Small Package
Long Life(1M cycle)
General Switch,
Auto-Match different Motor
Wide Voltage Range 115V(90V-137V) 230V(198V-264V)
50Hz/60Hz applicable
Neither switching noise nor trembling of contacts
High compatibility with general-purpose motors as well as application-specific motors
Easy installation and maintenance, mounted on inside/outside standard motor frames
Sealed with epoxy resin or silicon rub, insensitive to dirt, dust, moisture, and vibration
Discharges starting capacitors
ROHS/CE/UL
Applications
Refrigerators
Pumps
Shredders
Grinders
Hoists
Washing machines
Ice makers
Mixers
Sprayers
Drill/Tapping machines
Pumps
Shredders
Grinders
Hoists
Washing machines
Ice makers
Mixers
Sprayers
Drill/Tapping machines
Product List
| P/N | Voltage(V) | Max Start Current (3s TC=25) (A) | Package |
| RECS-105P | 115 | 30 | Plastic Case 72L*31W*23H |
| RECS-120P | 115 | 60 | Plastic Case 72L*31W*23H |
| RECS-120S | 115 | 60 | Plastic Case 52L*50W*24H |
| RECS-140P | 115 | 120 | Plastic Case 72L*31W*23H |
| RECS-160C | 115 | 180 | CAP Case 46Dia*86long |
| RECS-205P | 230 | 30 | Plastic Case 72L*31W*23H |
| RECS-220P | 230 | 60 | Plastic Case 72L*31W*23H |
| RECS-240P | 230 | 120 | Plastic Case 72L*31W*23H |
| RECS-260C | 230 | 180 | CAP Case 46Dia*86long |
