2800rpm 0.55kw 0.75hp AC Asynchronous Motor For Water Pump
Price:
negotiated
MOQ:
10pcs
Delivery Time:
25 working days after received your payment
Brand:
ZOZHI
Product Description
• Single Phase
• Single Speed
• Full rated motor
• Aluminum fan and anodized surface finish on the aluminum motor frame
• TEFC (Totally Enclosed Fan Cooled) motors
• TEFC motors are the perfect upgrade or replacement for your pool pump
• Improved bearing life
• Ambient air is not blown into the motor, preventing corrosion inside
• Aluminum fan and anodized surface finish on the aluminum motor frame
• Easy-to-wire with open access to a large junction box on top of the motor
Application:
>> Designed for the pool pump, bathtub pump, centrifugal pump
>> Be made of selected quality material, the latest design in its entirety
>> Good performance, low noise, little vibration, safe and reliable cooperation
>> Nice appearance, lightweight
>> Be maintained very conveniently, simple construction.
Operating Conditions:
1. Ambient temperature: -15 degree Celsius≤ θ ≤ 40degree Celsius
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Pool Pump Motor Production data
| Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | Tstart/Tn | Tmax/Tn | |
| HP | KW | |||||||||
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 |
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |

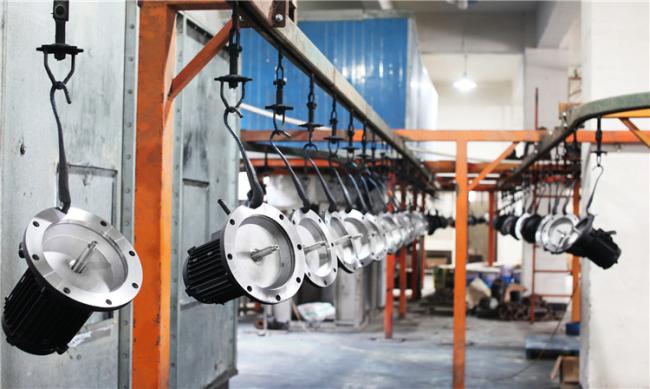

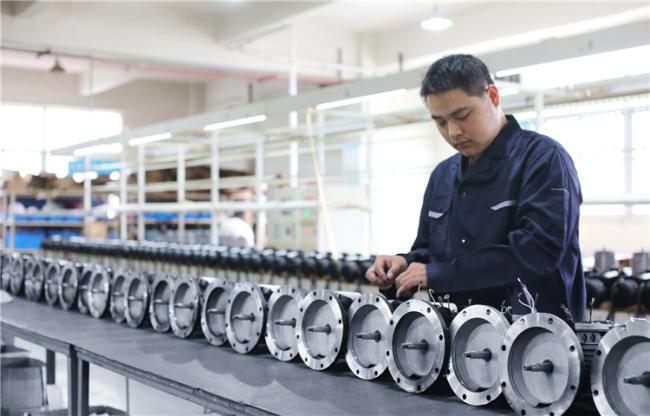

Pool Pump Motor Production line
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
