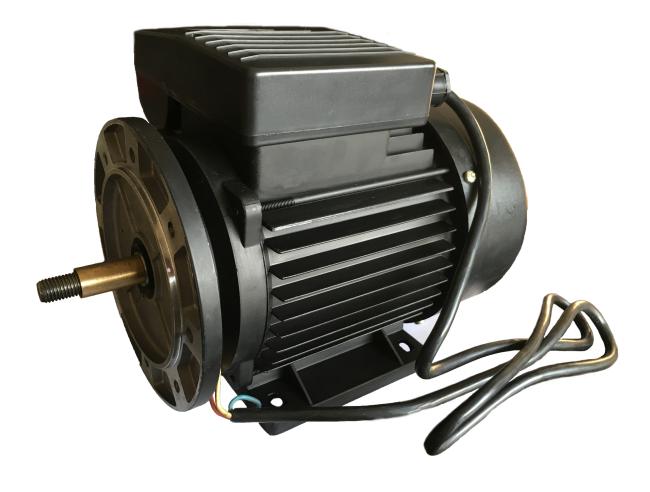

Aluminum 2800rpm 1.5hp 2hp Jet Water Pump Motor Swimming Pool
Aluminum 2800rpm 1.5hp 2hp Jet Water Pump Motor Swimming Pool
Single Phase Induction Motor
Specification:
| Where can use in: | This motor is designed for the pool pump. |
| Motor Type | AC single-phase asynchronous motor |
| Phase: | 1 phase. |
| Rated Voltage: | 110-230V |
| Frequency: | 50/60HZ |
| Output Power: | 0.75hp/1hp/1.5hp/2hp |
| Can Voltage/Frequency/Power be adjustable? | Sure. These items can be adjusted according to your requirement. |
| Speed: | 2800 RPM |
| FLA: | 5.5-4.5 |
| SFA | 7.0-6.0 |
| SF | 1.3 |
| Pole: | Two poles |
| What material is the winding wire? | We usually adopt 100% copper wire or CCAW to consider the performance and economy. |
| Protection Class: | Class F |
| Thermal Protection/Overload protection | YES |
| Work condition: | S1 |
| Sample Lead time: | 20-25 DAYS |
| Production Lead time: | 25-30 Days after receiving payment |
Application:
>> Designed for the pool pump, bathtub pump, centrifugal pump
>> Be made of selected quality material, the latest design in its entirety
>> Good performance, low noise, slight vibration, safe and reliable cooperation
>> Nice appearance, lightweight
>> Be maintained very conveniently, simple construction.
Operating Conditions:
1. Ambient temperature: -15 degree Celsius≤ θ ≤ 40degree Celsius
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Production data
| Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | T start/Tn | Tmax/Tn | |
| HP | KW | |||||||||
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 |
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |

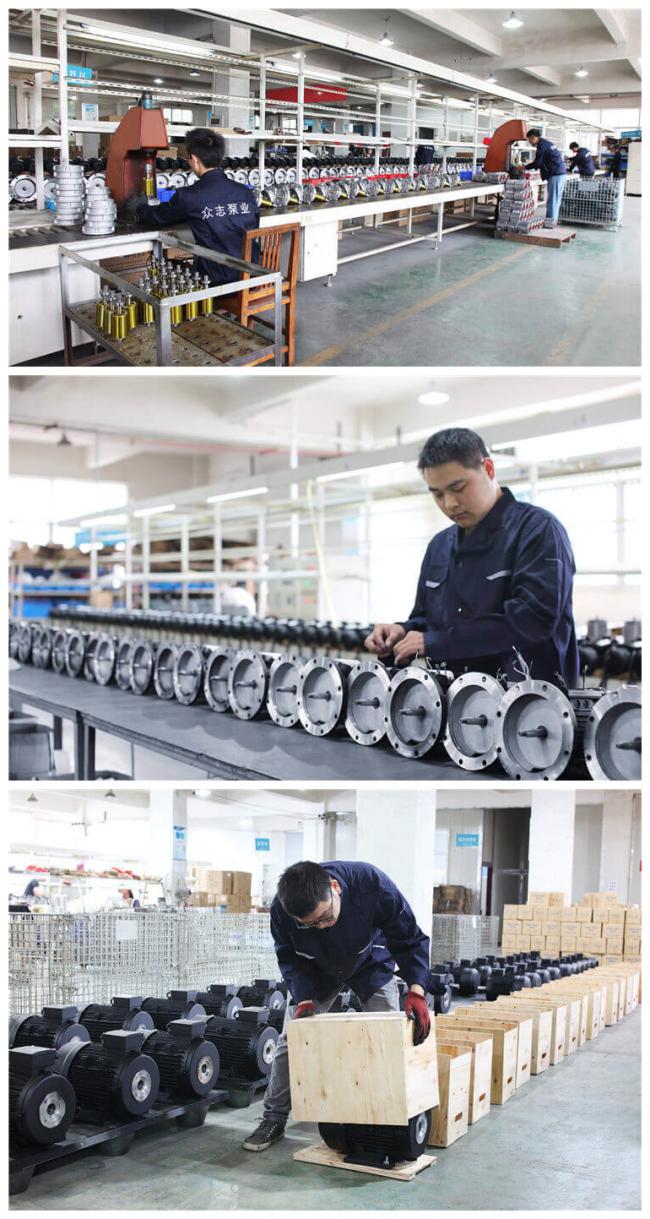

Production line
 |
 |
 |
 |
 |
 |
 |
 |
 |
INFORMATION
Motor bearing heating analysis
(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.
(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.
(3) improper lubrication system leads to bearing heating due to poor lubrication
(4) bearing heating caused by motor temperature rise or operating environment temperature.
