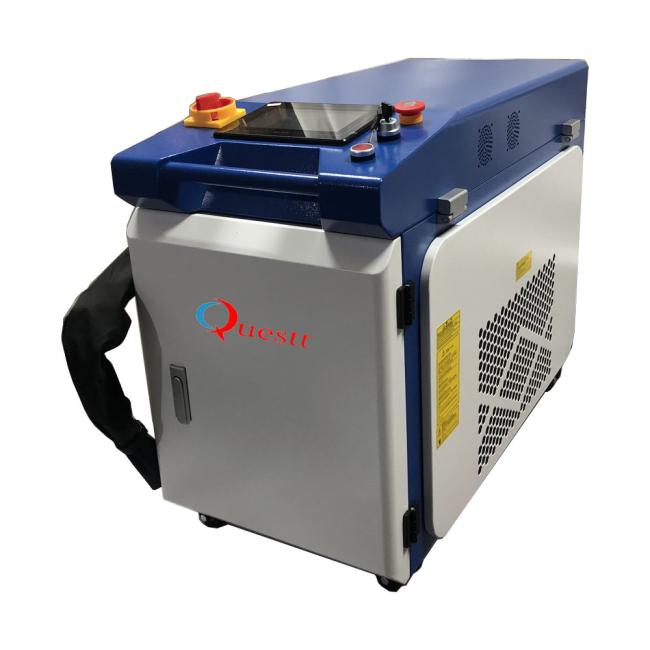

4 in 1High Quality 1000w 1500w 2000w Portable Light weld Handheld Hand Handle Fiber Laser Welder Welding Machines
4 in 1High Quality 1000w 1500w 2000w Portable Light weld Handheld Hand Handle Fiber Laser Welder Welding Machines
Features
1. One machine, three functions: welding, cleaning and cutting, the conversion of each function is convenient and simple.
2. Ergonomic Design , convenient to move. Compact structure, easy for operation
and maintenance.
3. Built-in high-efficiency chiller, the whole machine only 110KG.Small volume 0.23m³ , easy to put in a car.
4. Light and flexible handheld welding head for welding at any angle, integrated gas
protection system and auto feeder.
5. Welded Firmly, Fast Welding Speed, Weld Seam is Smooth and even
6. Fast Welding Speed, Efficiency is 3-10 Times that of Argon Arc Welding.
Three type heads
Three types gun
 |
Laser welding head |
 |
Laser cutting head |
 |
Laser cleaning head |
Parameters
| Model | QA-FL1000W | QA-FL1500W | QA-FL2000W |
| Average output power | 1000W | 1500W | 2000W |
| Operation Mode | CW/Modulate | ||
| Max Modulation Frequency | 5KHz | ||
| Output Power Stability | ±3% | ||
| Red Laser | Yes | ||
| Terminal Type | QBH | ||
| Beam Quality | 1.3M2 | 1.5M2 | 1.8M2 |
| Polarization | Random | ||
| Delivery Cable Length | 20M | ||
| Power Supply | 1 PH 220V five wire connect | ||
| Control Mode | RS232/AD | ||
| Power Consumption | 4.5KW | 6KW | 8KW |
| Cooling | Water Cooled | ||
| Operation Temperature | 10-40 degree | ||
| Max Depth of welding | 3mm | 4mm | 5mm |
| Machine Weight | 110Kg | 110Kg | 110kg |
| Package size |
884*436*682mm |
||
Machine details
Samples
