Benchtop Type Jewelry Laser Welding Machine 60 - 100 J For Repair Metal Materials
Laser soldering machine for jewelry 200W Imported lens reflection mirror
Introduction
Robot200J soldering machine for jewelry is an benchtop type laser spot welder, it can weld and repair for all the metal materials. Especially for jewelry, like gold, silver etc.
There is no special block needed during the processing. The pieces to be processed can be hold by hand, and to be welded under the microscope conveniently.
Besides, laser spot welding can be used to group weld tiny components, for example, weld motor electrode and optical components in greenhouse or special condition.
Machine Advantages
1 Humanized design
2 high efficiency, small heat-affected zone
3 Non-pollution
4 life of condensation cavity are 8-10 years
5 life of xenon light is more than 8000 thousands
Specification data sheet
| type | Robot200J | |
| Output laser power | 200W | |
| Energe | 100 J | |
| Wave length | 1064nm | |
| Laser power supply | 4KW | |
| Laser welding minimum melt pool | 0.1mm | |
| Laser pulse frequency | ≤50Hz | |
| Laser pules width | ≤20ms | |
| Port adjusting scope | 0.1～3.0mm | |
| Port size | 0.2～3.0mm | |
| Protective gas | N2 | |
| Power demand | 220V one-phase/50Hz/20A | |
| Figure size of system | Laser welder | 1160X640X1410mm |
| Water chiller | 740X600X1090mm | |
Applications
Aviation, aerospace, sporting goods, jewelry, golf head, medical equipment, instrumentation, electronic, mechanical processing, auto, specially used in filling hole on gold and silver jewelry, spot welding slot and parts and claw foot position
This laser soldering machine is especially design for jewelry.
Samples

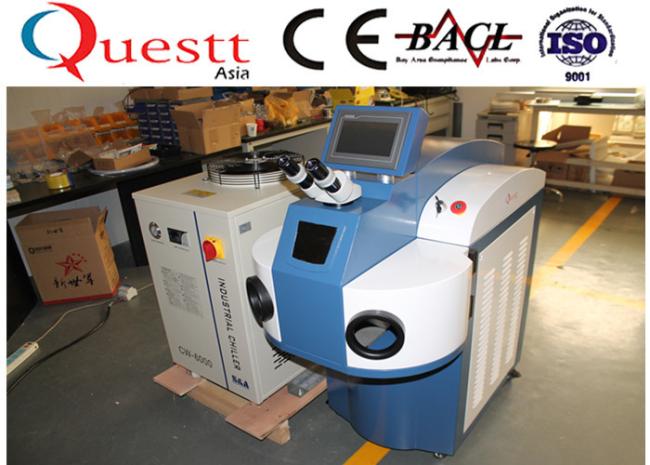

Machine outlook
FAQ:
1 Q: What is the warranty of this laser welder?
A: 2 yearwarranty and whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service for little problems, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
