Mould repairing Laser Welding Machine 200W YAG laser source water cooling
Introduction
Robot200M Mould laser welding machine is is especially designed for the mould industry, and it is applied to repair of precision moulds, for example, digital products, handsets, toys, autos, and motors mould making and modeling.
The mould repair can make full use of the original moulds, which will greatly reduce the production cost, and improve the working efficiency. The technology can also be applied to modification of mould design or size, thus reducing the development cycle of the product.
The processing type is heat transmission, processing work pieces surface by laser radiation , heat transmit from surface to bowel, by controlling laser width, energy, top power and repitition frequency to melt workpieces , form a special melting pool.
Machine Advantages
1. The ceramic focusing cavity is corrosion and high temperature resistant, and the service life is 8 to 10 years, while the service life of the xenon lamp is over 8 million times.
2. World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation.
3. The laser head can be turned for 360 degrees, and the whole optical path can be turned 360 degrees too, up and down by motor,front and after adjustable, especially suitable for repair of large, medium and small-sized moulds.
4. Intelligent remote controllers are employed for adjusting parameters, with simple and convenient operation.
5. The workbench can be adjusted up and down with three-dimensional moving.
6. The light spots can be adjusted in size.
Specification data sheet
| type | Robot200 | |
| Output laser power | 200-500W | |
| Energe | 60-120 J | |
| Wave length | 1064nm | |
| Laser power supply | 4KW | |
| Laser welding minimum melt pool | 0.1mm | |
| Laser pulse frequency | ≤50Hz | |
| Laser pules width | ≤20ms | |
| Port adjusting scope | 0.1～3.0mm | |
| Port size | 0.2～3.0mm | |
| Protective gas | N2 | |
| Power demand | 220V one-phase/50Hz/20A | |
| Figure size of system | Laser welder | 1160X640X1410mm |
| Water chiller | 740X600X1090mm | |
Consumable
| Item | Specification | Quantity consume of one year | Photo |
| Imported Xenon Lamp |
1.8 million times` lighting 2.12 month lifetime 3.material imported |
2-6 pcs | |
| Imported Protection lens |
1.6-12 months lifetime 2.material imported |
2-4pcs |
Applications
This laser welder is specially design for repairing all kinds of mould.
It can also welding Stainless steel, Iron, Copper, Bronze, Aluminum etc. Different kinds of metal material is OK for welding.
Laser source

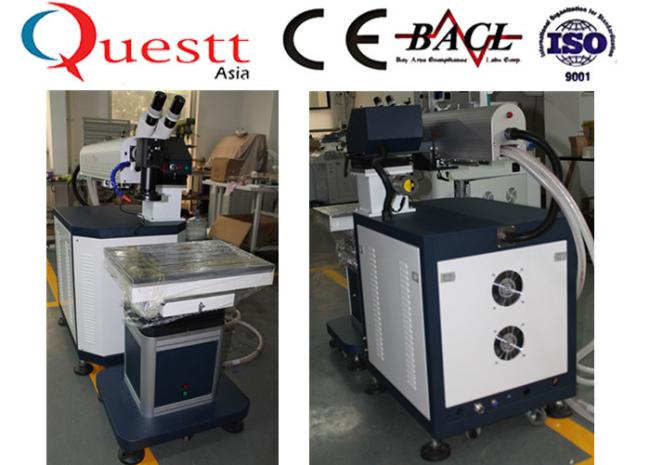

Machine outlook
FAQ
1 Q: What is the warranty of the machine?
A: The warranty is 1 year, but whole life service.
2 Q: What is the payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is the service
A: Engineer offer oversea services .
4 Q: How about the quality?
A: Germany high technoloy
5 Q: Can we customize as special needs?
A: Yes you can.
