100 W CO2 Nonmetal Portable Laser Marking Machine Water Cooled CE Certificate
100W CO2 Laser Marking Machine for nonmetal Water cooled CE Certificate
Equipment discription
All the fittings can meet the pipelining processing continues dynamic on line with the proprietary working control software. It can realized automatic edition and correction of characters, signs, graphs, images, bar codes, two-dimensional codes, automatically increased serial numbers. Marking has non-touched process, permanent effect, humanized operation, and stable running.
Using software control modules,low power consumption,long life marking ,stable and perfect marking quality support . Maintenance-free.
Features
1) Large laser power
2) Power is controlled by software,continuous adjustable.
3) Processing cost is low ,any consumble is not needed
4) Marking scope is large
5) Mark is clear ,difficult to wear.High efficiency of cutting
6) Free to control the depth of engraving
Specification
| Laser medium | CO2 |
| Laser tube | Glass tube |
| Light wavelength | 10.6um |
| MAX output power | 60W/80W/100W |
| Polarization | Linear－vertical 50:1 extinction minimum |
| Cooling system | Water cooled |
| Diameter of the smallest beam spot | 0.1mm |
| Marking area |
70*70mm Standard 110*110mm/175*175mm/230*230mm Optional |
| Power supply | 1 phase, 220V, 50/60Hz, 1KW |
| Repeatability | 0.05 mm |
| Positioning accuracy | 0.05 mm |
| Marking depth | 0.01 ~ 0.3mm(according to the material) |
| Beam Diameter | 10um |
| Power supply | Single phase 220V AC 500VA 50/60Hz |
| Weight | 150kg |
Application
Line: Baccy, pharmacy, food and beverage, alcohol, health protection electronics, art-gifts, leather, etc. Material: Paper plastic, film, silver paper, mood, glass, PET, pvc, etc.
Sample

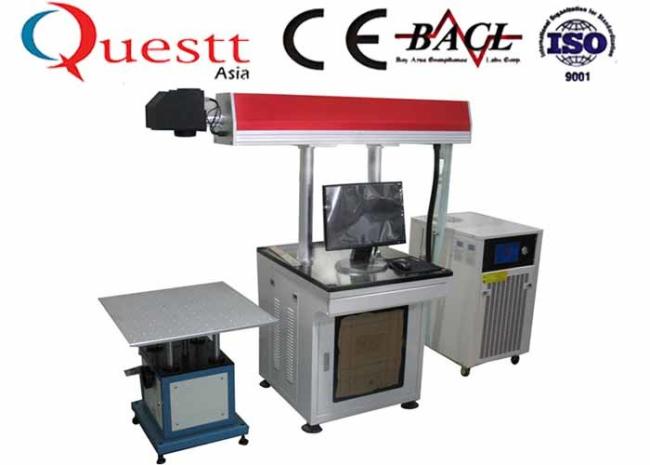

Machine outlook
FAQ
1 Q: What is the warranty of the laser marker?
A: The warranty is 12 months.
2 Q: Are you a factory?
A: Yes, we are factory.
3 Q: What is the service
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize if we have special request?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, Westen Union etc.
